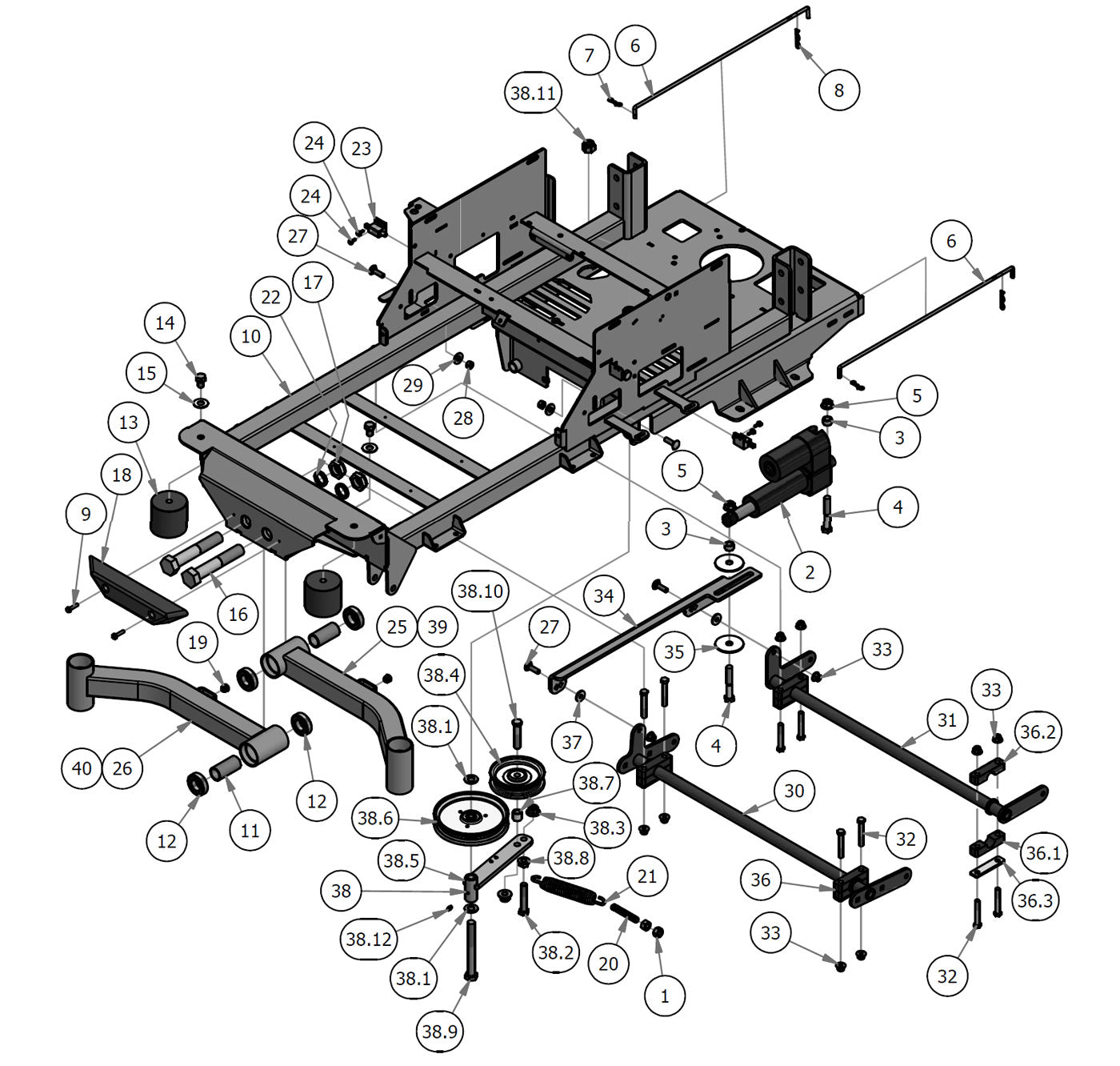

Lower Frame Assembly
Parts Index
- 1 1/2-13 Hex Nuts Zinc (Qty 2)
- 2 Actuator for Pup/Lightning/AOS (Qty 1)
- 3 1/2 Set Collar w/set collar (Qty 2)
- 4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 2)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 6 ZT Neutral Lever/Rod 2011 (Qty 2)
- 7 Bow Pin (Qty 2)
- 8 Neutral Rod Clip (Qty 2)
- 9 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 11 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 12 Caster Bearing (Qty 4)
- 13 Isolator (Red Dot) (Qty 2)
- 14 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 15 1/2 SAE Flat Washer GR 8 (Qty 2)
- 16 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 17 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 18 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 19 5/8 Round Insert - Deck (Qty 2)
- 20 All Thread (Qty 1)
- 21 2015 Deck Idler Spring (Qty 1)
- 22 Spacer ( Front Fork and Suspension ) (Qty 2)
- 23 Safety Switch (Qty 2)
- 24 12-24 x 1/2 HWH Bolt (Qty 4)
- 25 2018 Maverick Front Arm Weldment-LH (Qty 1)
- 26 2018 Maverick Front Arm Weldment-RH (Qty 1)
- 27 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 28 3/8-16 Hex Nuts Zinc (Qty 2)
- 29 3/8 USS Flat Washer Zinc (Qty 2)
- 30 Actuator Bar (Front) (Qty 1)
- 31 Actuator Bar (Rear) (Qty 1)
- 32 3/8x2 1/2" Hex Bolt (Qty 8)
- 33 3/8 Nylock Flange Nut (Qty 10)
- 34 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 35 Snubbing Washer-032-4050-00 (Qty 2)
- 36 Pillow Block (Qty 4)
- 36.1 2017 Magnum Pillow Block-Male (Qty 1)
- 36.2 2017 Magnum Pillow Block-Female (Qty 1)
- 36.3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 37 .360 ID Plastic Washer (Qty 2)
- 38 Pump Idler Bracket Assy-Maverick (Qty 1)
- 38.1 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 38.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 38.3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 38.4 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 38.5 Idler Bracket (Qty 1)
- 38.6 5 3/4 Idler Pulley-Don Dye (Qty 1)
- 38.7 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 38.8 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 38.9 5/8 x 5 1/2 Bolt (Qty 1)
- 38.10 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 38.11 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 38.12 1/4 Drive-in Grease Fitting (Qty 1)
-
1#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2#035-7033-00
Actuator for Pup/Lightning/AOS
Qty Used: 1Regular price $408.75 USDRegular priceUnit price per
-
3#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 2Regular price $4.18 USDRegular priceUnit price per
-
438.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
538.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#031-0060-00
ZT Neutral Lever/Rod 2011
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
-
8#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
9#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
11#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
12#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
13#032-9002-00
Isolator (Red Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
14#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
15#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
16#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
17#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
-
19#014-3010-00
5/8 Round Insert - Deck
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
20#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
21#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
22#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
23#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
24#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-

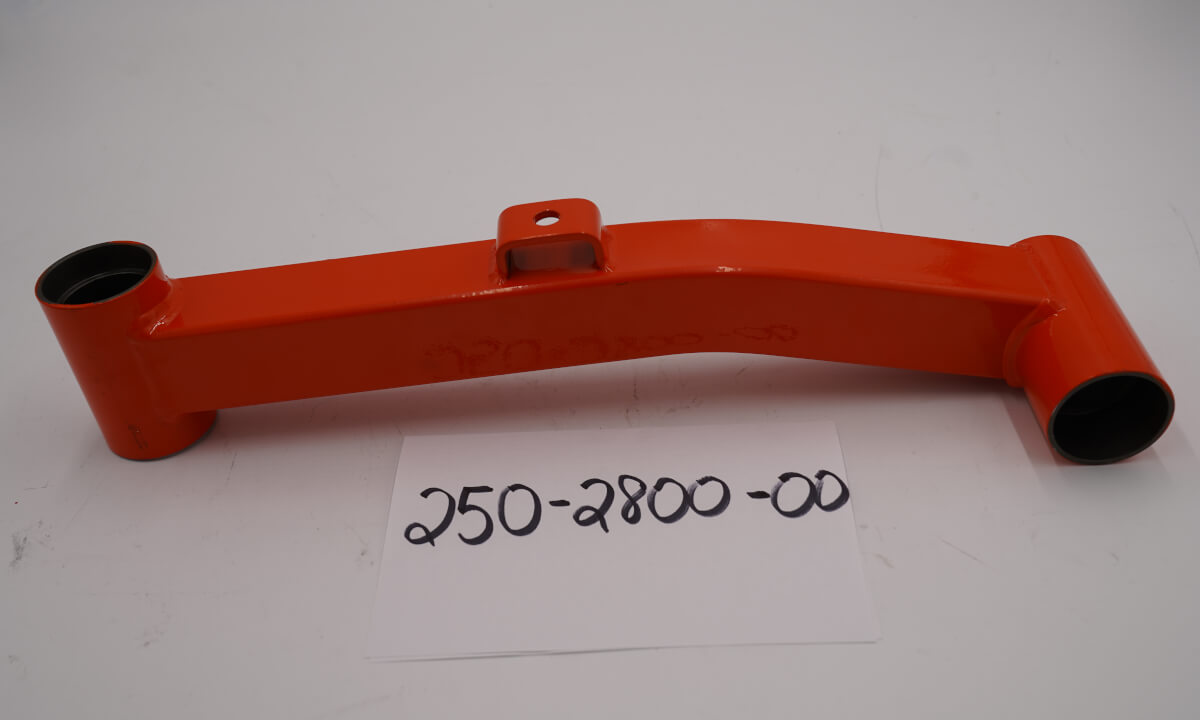

25#250-2800-00
2018 Maverick Front Arm Weldment-LH
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
26#250-2850-00
2018 Maverick Front Arm Weldment-RH
Qty Used: 1Regular price $65.95 USDRegular priceUnit price per
-
27#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
28#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
29#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
30#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
31#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
32#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
33#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
34#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
35#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 2Regular price $15.91 USDRegular priceUnit price per
-
36#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
36.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
36.2#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
36.3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
37#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
38#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
38.1#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
38.4#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
38.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-

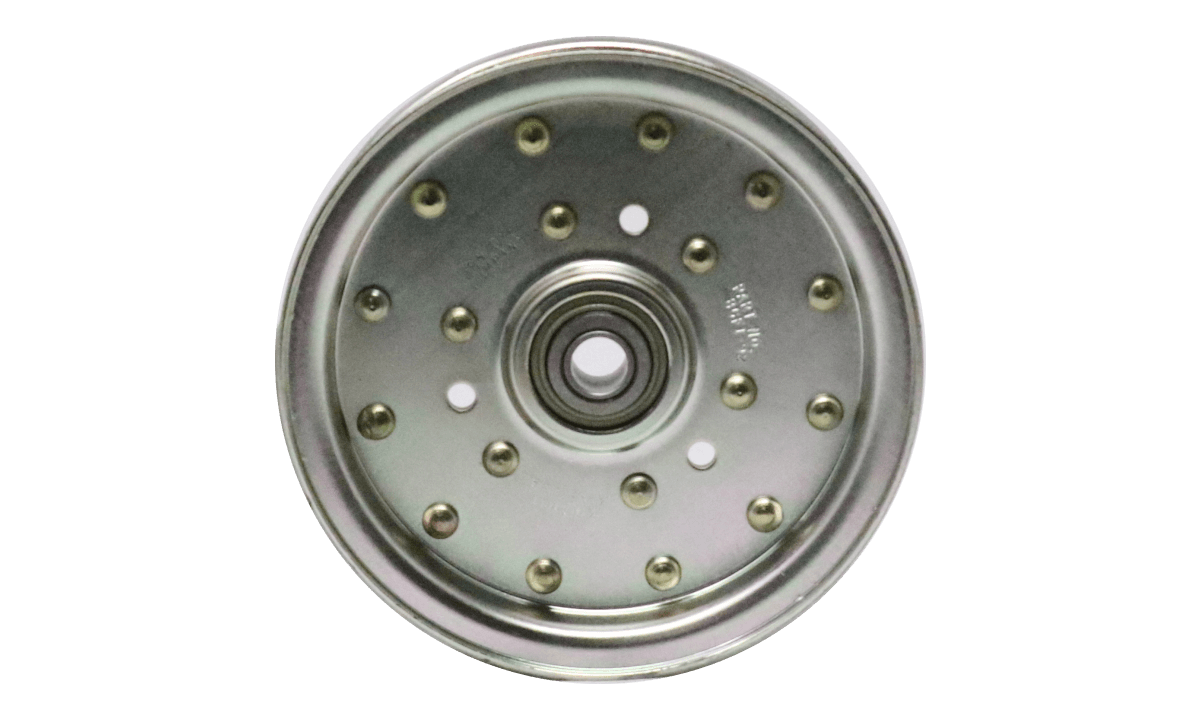

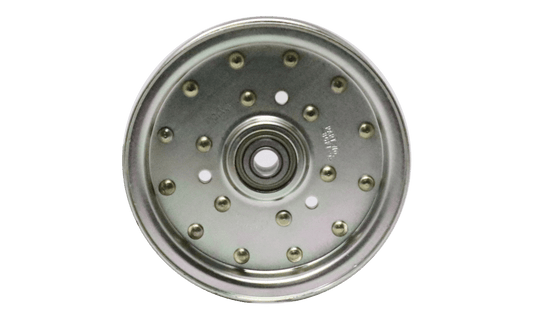

38.6#033-7201-00
5 3/4 Idler Pulley-Don Dye
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
38.7#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
38.8#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
38.9#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
38.10#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
38.11#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
38.12#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
