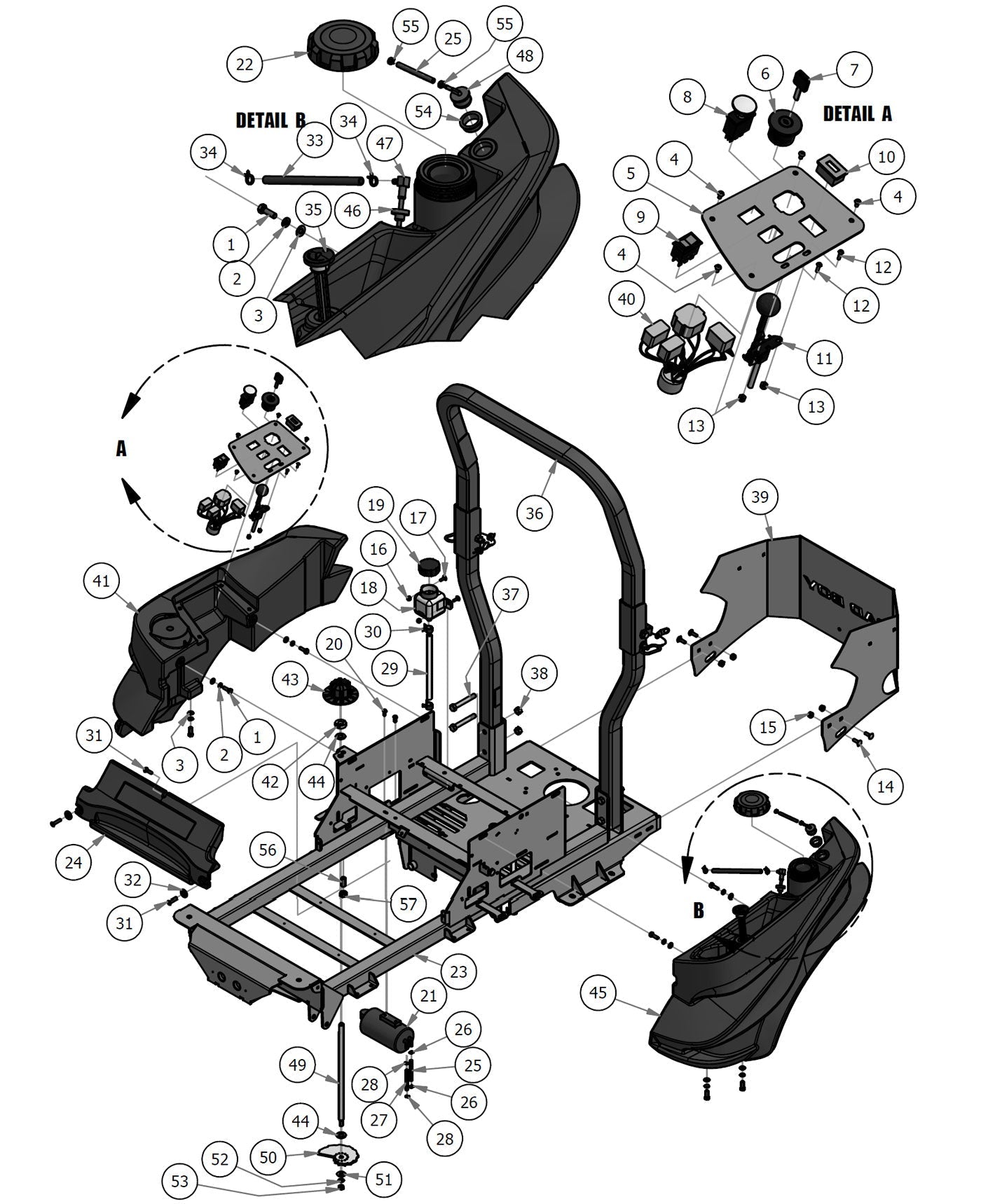

Gas Tank & Rear Cover Assembly
Parts Index
- 1 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 2 5/16 Lock washer Zinc (Qty 7)
- 3 5/16 USS Flat Washer Zinc (Qty 7)
- 4 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 5 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 6 Ignition Switch (Qty 1)
- 7 Ignition Key (Qty 1)
- 8 PTO Engager-Switch for Blades (Qty 1)
- 9 Rocker Deck Lift Switch - 2011 (Qty 1)
- 10 Tachometer-N310-0100-1018 (Qty 1)
- 11 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 12 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 13 10-24 Nylon Insert Locknut Zin (Qty 2)
- 14 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 15 5/16-18 Nylon Flange Nut (Qty 4)
- 16 1/4-20 Nylon Insert Locknut Zi (Qty 4)
- 17 1/4 x 3/4 Carriage Bolt (Qty 4)
- 18 71328-Expansion Tank CZT/ZT (Qty 2)
- 19 ZT Hydraulic Tank Cap (Qty 2)
- 20 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 21 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 22 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 24 2016 Maverick Front Cover-Plastic (Qty 1)
- 25 1/4" Vinyl Tubing - Black per foot (Qty 2)
- 26 3/16 Fuel Hose Clamp (Qty 2)
- 27 3/16" Vinyl Tubing per foot (Qty 1)
- 28 3/16" Vinyl Hose Clamp (Qty 2)
- 29 3/8 Clear Hose PRICED PER FOOT (Qty 2)
- 30 3/8 Hose Clamp - CTB-16-STFS (Qty 4)
- 31 5/16-18 x 1.5" Torx Cutter-Blk (Qty 3)
- 32 1/2 Flat Washer-Flat Black (Qty 2)
- 33 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 34 1/4 Fuel Line Clamp (Qty 2)
- 35 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 36 Mav, HD 2x2 Folding ROPS (Qty 1)
- 37 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 38 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 39 2017 ZT Rear Plate--Orange (Qty 1)
- 40 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 41 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 42 Split Collar (Qty 1)
- 43 Deck Height Dial (Qty 1)
- 44 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 45 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 46 Grommet for ZT Elite Fuel Line (Qty 1)
- 47 Fuel Line Pickup Tube for ZT (Qty 1)
- 48 Rollover Valve and Grommet New (Qty 1)
- 49 2017 Deck Height Dial Rod ZT (Qty 1)
- 50 Deck Height Cam Plate (Qty 1)
- 51 3/8 USS Flat Washer Zinc (Qty 1)
- 52 3/8 Lockwasher Zinc (Qty 1)
- 53 3/8-24 Hex Nut Zinc (Qty 1)
- 54 Rollover Valve and Grommet New (Qty 1)
- 55 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 56 Deck Height Cam Plunger (Qty 1)
- 57 1/2-13 Hex Nuts Zinc (Qty 1)
-
53#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
55#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
56#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
57#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
1#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
2#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
3#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
4#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
7#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
8#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-

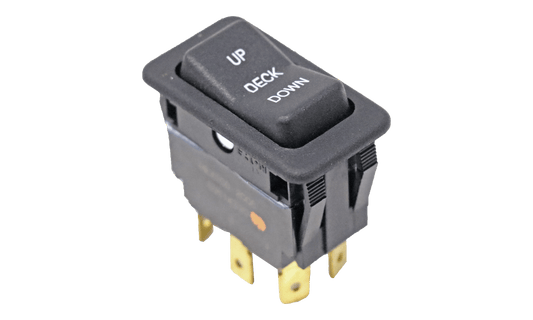

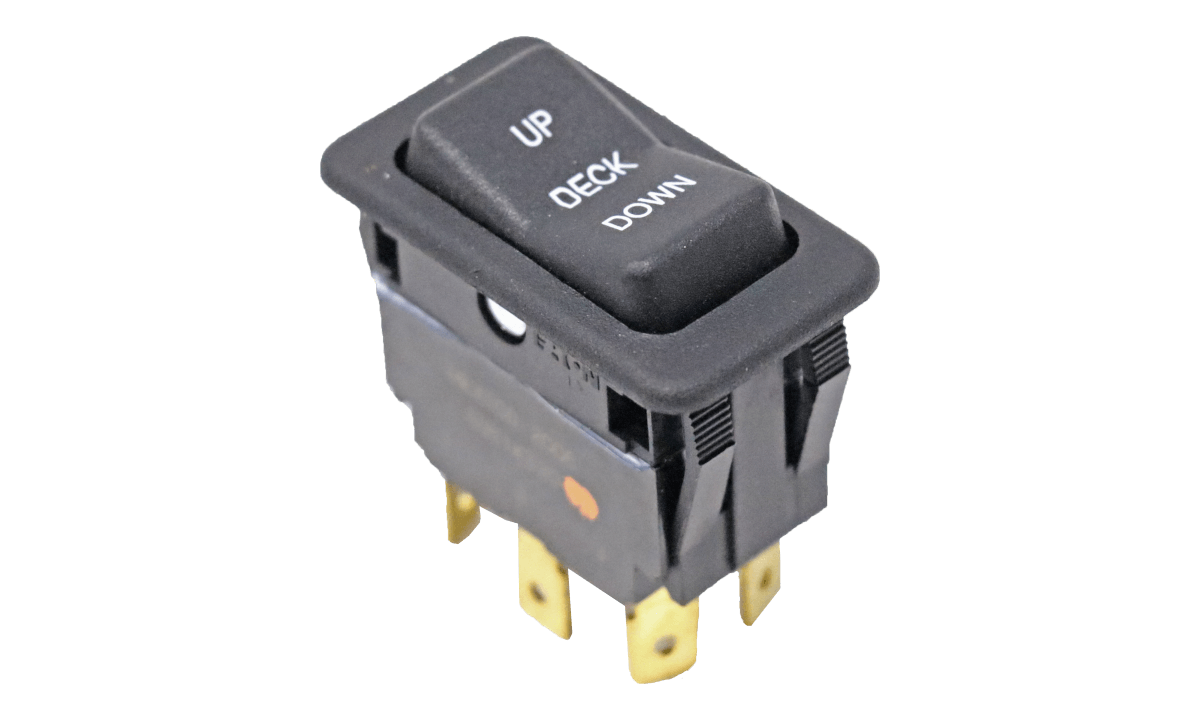

9#078-3000-00
Rocker Deck Lift Switch - 2011
Qty Used: 1Regular price $34.96 USDRegular priceUnit price per
-
10#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
11#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
12#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
16#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
17#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
18#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
19#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
20#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
2122#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
24#014-2070-50
2016 Maverick Front Cover-Plastic
Qty Used: 1Regular price $54.95 USDRegular priceUnit price per
-
25#051-8072-00
1/4" Vinyl Tubing - Black per foot
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
26#072-8072-00
3/16 Fuel Hose Clamp
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
27#051-8073-00
3/16" Vinyl Tubing per foot
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
28#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
29#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
30#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
31#018-0031-00
5/16-18 x 1.5" Torx Cutter-Blk
Qty Used: 3Regular price $3.99 USDRegular priceUnit price per
-
32#013-0013-00
1/2 Flat Washer-Flat Black
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
33#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
34#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
35#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
36#089-0005-00
2016 Maverick 2x2 Folding ROPS
Qty Used: 1Regular price $396.75 USDRegular priceUnit price per
-
37#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
38#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
39#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
40#086-3050-17
2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
41#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
42#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
43#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
44#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
45#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
46#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
47#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
4854#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
49#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
50#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
51#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
52#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
