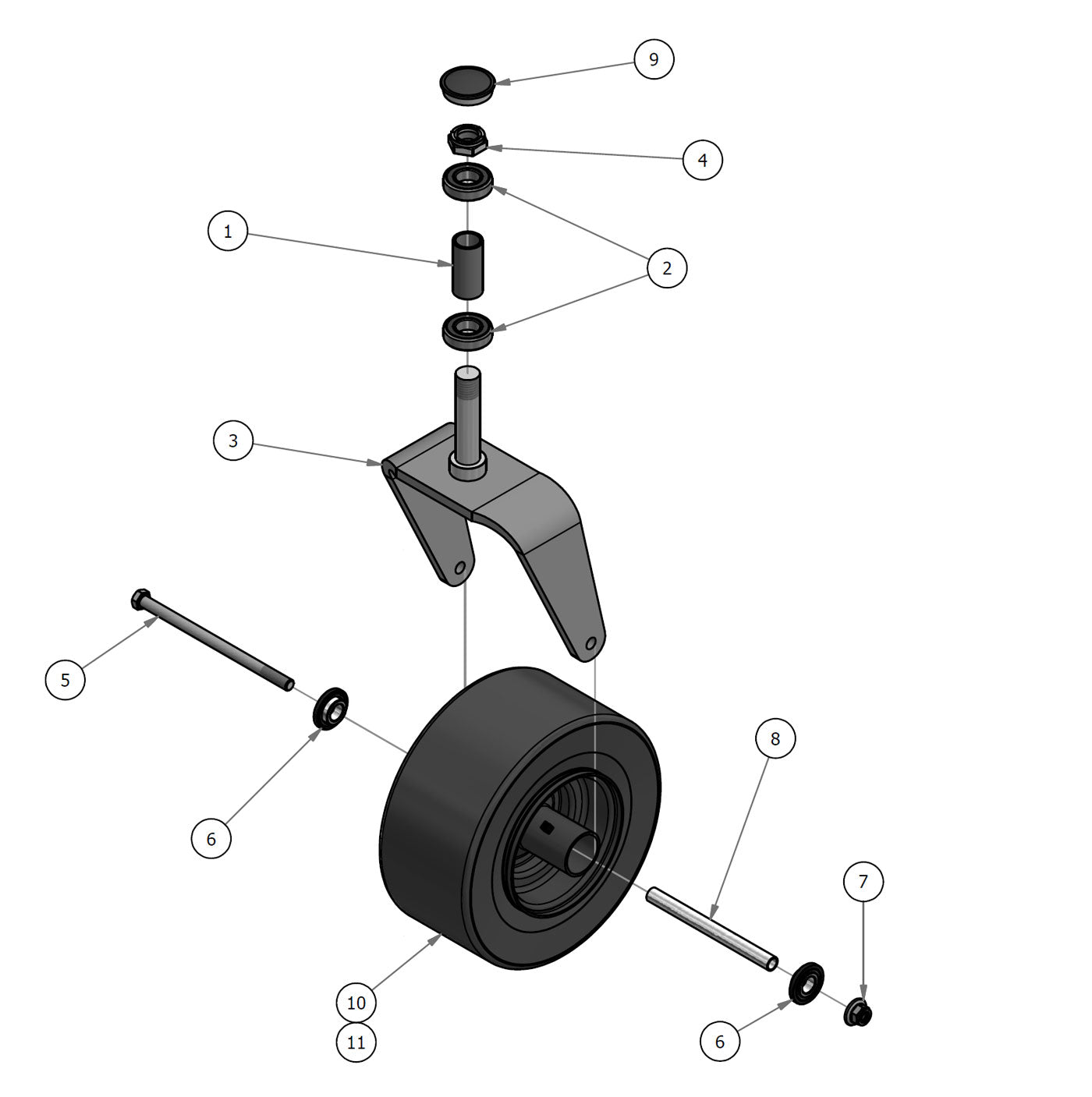

Front Fork Assembly
Parts Index
- 1 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 1)
- 2 Caster Bearing (Qty 2)
- 3 Front Fork (Qty 1)
- 4 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 5 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 6 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 8 Front Wheel Spanner-All Models (Qty 1)
- 9 Bearing Retainer Cap (Qty 1)
- 10 13x6.50-6 Caster Front (Qty 1)
- 11 13 x 6.50 - 6 Tire (Qty 1)
-
1#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
2#010-1050-00
Caster Bearing
Qty Used: 2Regular price $17.19 USDRegular priceUnit price per
-
3#023-7913-00
Front Fork
Qty Used: 1Regular price $129.84 USDRegular priceUnit price per
-
4#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
5#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
6#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 2Regular price $12.49 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
8#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
9#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
10#022-2017-00
13x6.50-6 Caster Front
Qty Used: 1Regular price $87.99 USDRegular priceUnit price per
-
11#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
