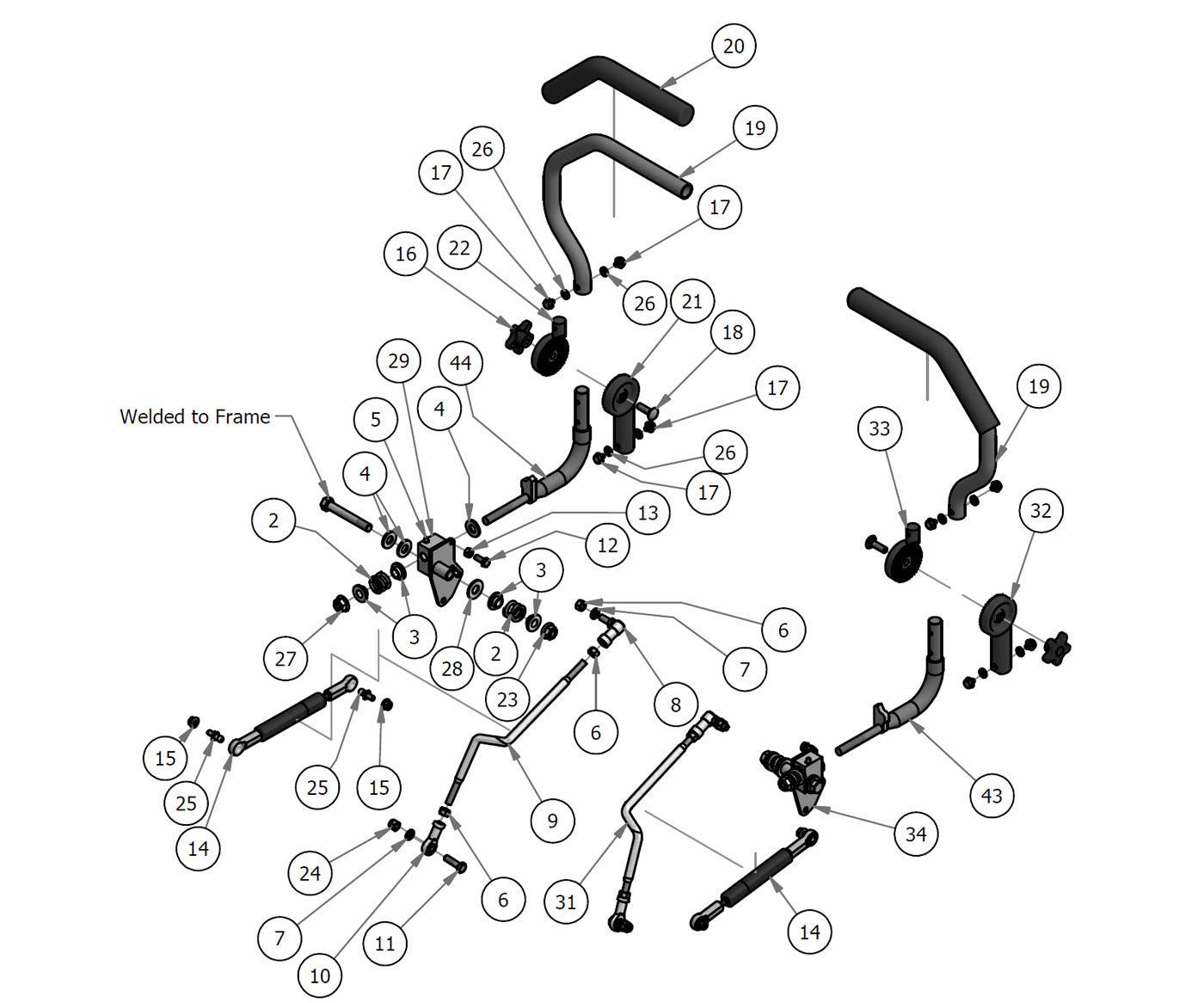

Drive Arm Assemblies
Parts Index
- 2 Drive Lever Housing Spring (Qty 4)
- 3 .515 ID Plastic Shoulder Washer (Qty 8)
- 4 .505 ID X 1 OD X .128 THK Washer (Qty 6)
- 5 1/4 Drive-in Grease Fitting (Qty 2)
- 6 3/8-24 Hex Nut Zinc (Qty 6)
- 7 3/8 Lockwasher Zinc (Qty 4)
- 8 Quick Release Ball Joint (Qty 2)
- 9 Push Rod LH (Assembly) (Qty 1)
- 10 Spherical Rod End (Qty 2)
- 11 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 12 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 13 5/16-18 Hex Nuts Zinc (Qty 2)
- 14 Arm Dampener (Qty 2)
- 15 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 16 Knob - Adjustable Steering Arm (Qty 2)
- 17 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 8)
- 18 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 19 Upper Tube-Adjustable Steering (Qty 2)
- 20 Black Steering Grip (Qty 2)
- 21 Lower Adjuster Steering Arm Left (Qty 1)
- 22 OBSOLETE USE 031-9017-70 (Qty 1)
- 23 1/2-13 HEX FLANGE (GR.G) ZC (Qty 2)
- 24 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 25 10mm Damper Ball Stud- (Qty 2)
- 26 5/16 Lock washer Zinc (Qty 8)
- 27 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 28 1/2 SAE Flat Washer GR 8 (Qty 2)
- 29 Drive Lever Housing LH (Qty 1)
- 31 Push Rod RH (Assembly) (Qty 1)
- 32 OBSOLETE USE 031-9015-70 (Qty 1)
- 33 OBSOLETE USE 031-9016-70 (Qty 1)
- 34 Drive Lever Housing RH (Qty 1)
- 43 Steering Arm Elbow - Right (Qty 1)
- 44 Steering Arm Elbow- Left (Qty 1)
-
2#034-8025-00
Drive Lever Housing Spring
Qty Used: 4Regular price $3.70 USDRegular priceUnit price per
-
3#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
4#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
5#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
6#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
7#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
8#099-2009-00
Quick Release Ball Joint
Qty Used: 2Regular price $8.99 USDRegular priceUnit price per
-
9#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
10#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
11#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
13#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
-
15#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
16#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
17#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
18#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
19#031-9010-00
Upper Tube-Adjustable Steering
Qty Used: 2Regular price $26.47 USDRegular priceUnit price per
-
20#069-4010-00
Black Steering Grip
Qty Used: 2Regular price $7.38 USDRegular priceUnit price per
-

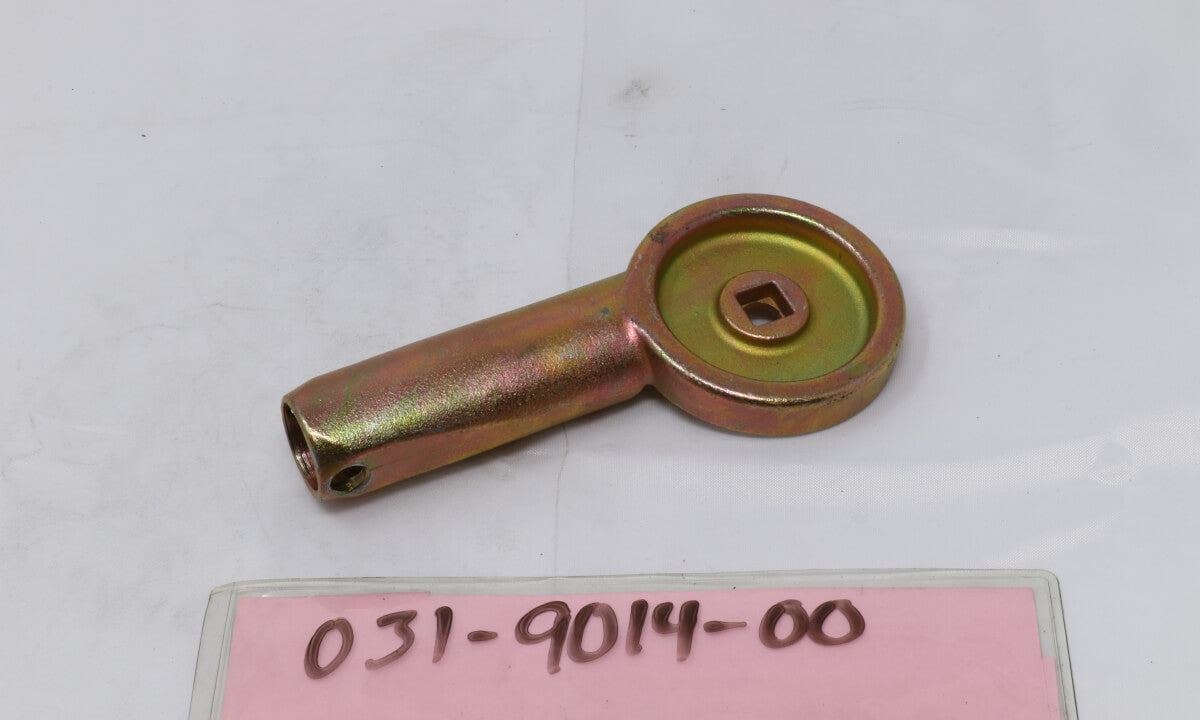

21#031-9014-00
Lower Adjuster Steering Arm Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
22#031-9017-00
OBSOLETE USE 031-9017-70
Qty Used: 1Regular price $37.50 USDRegular priceUnit price per
-
23#013-0085-00
1/2-13 HEX FLANGE (GR.G) ZC
Qty Used: 2Regular price $1.10 USDRegular priceUnit price per
-
24#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
25#018-2050-00
10mm Damper Ball Stud-
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
26#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
27#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
28#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
29#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
31#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-

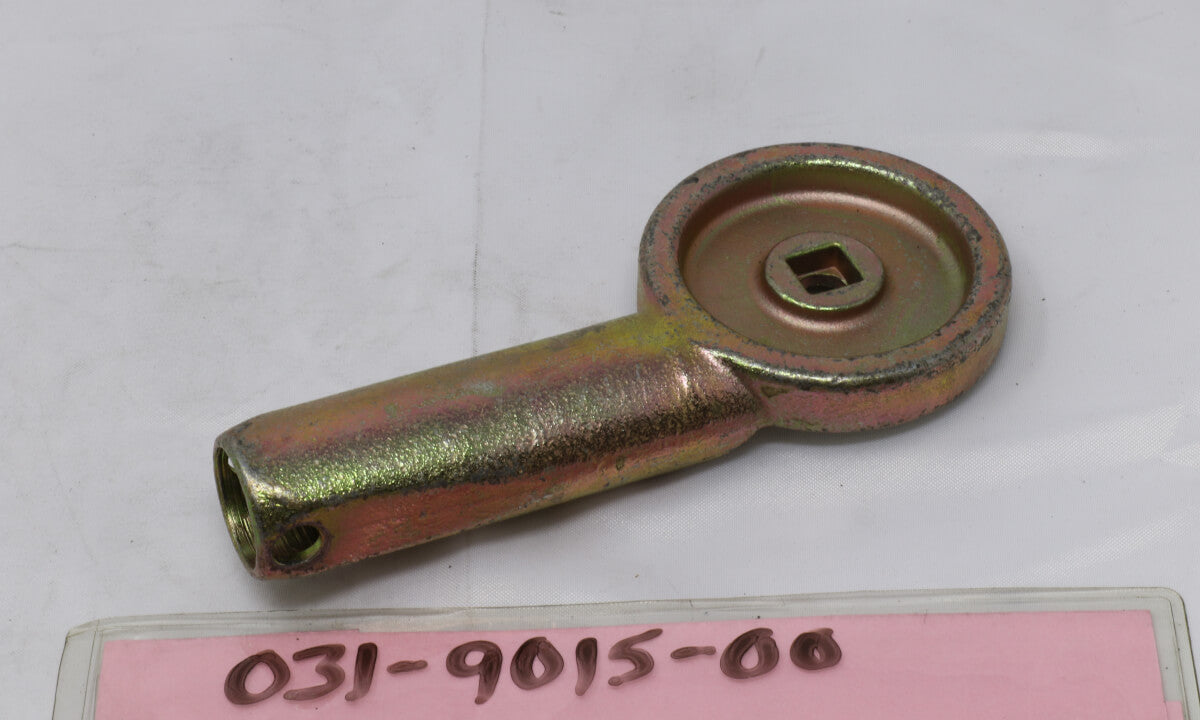

32#031-9015-00
OBSOLETE USE 031-9015-70
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
33#031-9016-00
OBSOLETE USE 031-9016-70
Qty Used: 1Regular price $37.00 USDRegular priceUnit price per
-
34#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
43#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
44#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
