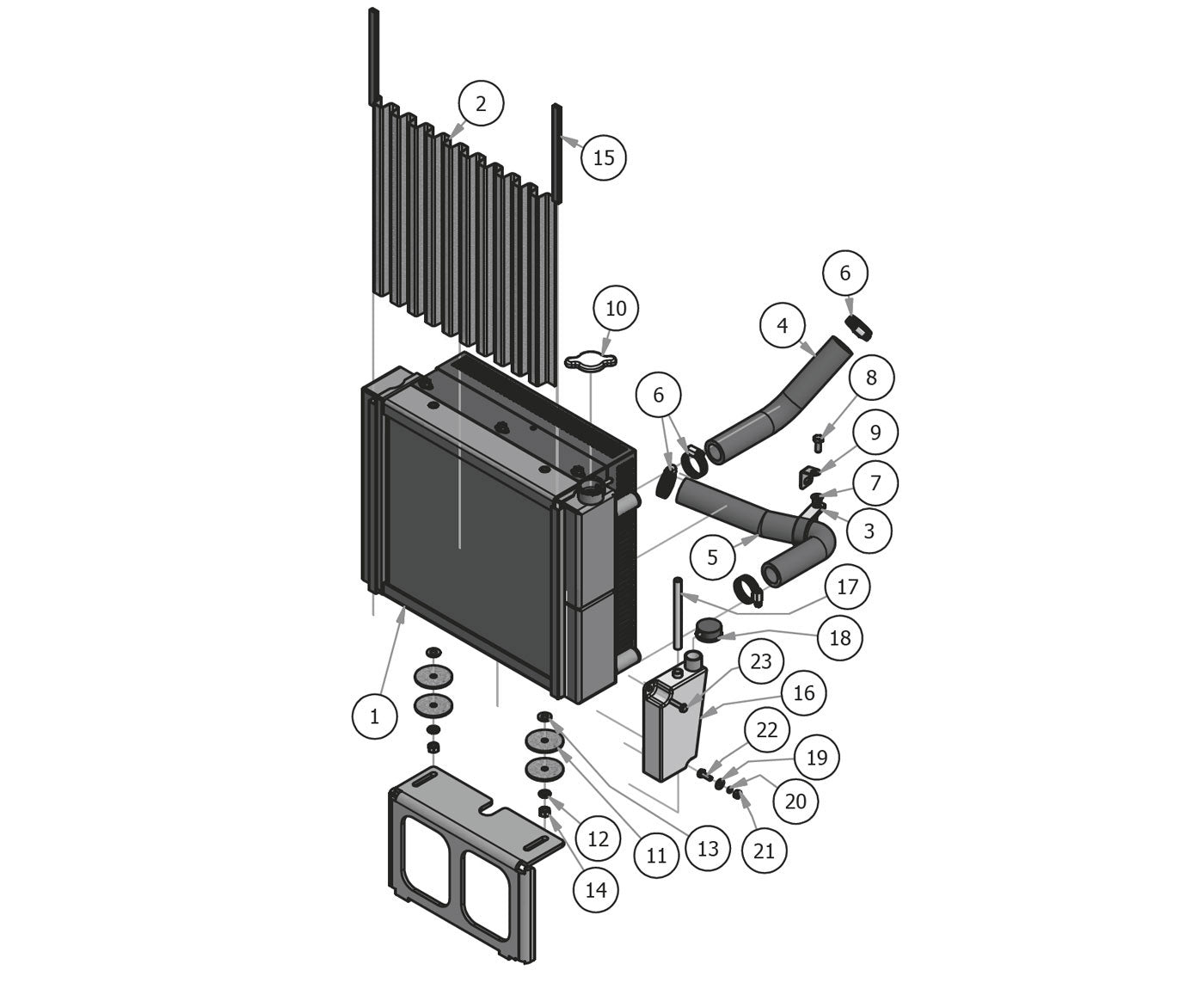

Radiator

Parts Index
- 1 Radiator - Diesel Models (Qty 1)
- 2 Radiator Screen Diesel (Qty 1)
- 3 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 4 Top Radiator Hose - Diesel (Qty 1)
- 5 Diesel Radiator Hose - Bottom (Qty 1)
- 6 1 1/8 Hose Clamp (Qty 4)
- 7 5/16-18 Nylon Flange Nut (Qty 1)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 9 Radiator Hose Clamp Bracket--Plated (Qty 1)
- 10 Cat Diesel Radiator Cap (Qty 1)
- 11 3/8 X 2-1/4 OD Fiber Washer (Qty 4)
- 12 3/8 Lockwasher Zinc (Qty 2)
- 13 3/8 USS Flat Washer Zinc (Qty 2)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 15 Rubber Trim (Qty 2)
- 16 Overflow Reservoir-27 Kaw (Qty 1)
- 17 5/16 Clear Hose (Qty 1)
- 18 Reservoir Tank Cap-Overflow Ta (Qty 1)
- 19 1/4 USS Flat Washer Zinc (Qty 1)
- 20 1/4 Lockwasher Zinc (Qty 1)
- 21 1/4-20 Hex Nuts Zinc (Qty 1)
- 22 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 23 1/4 x 1 Hex Head Tek Screw (Qty 1)
