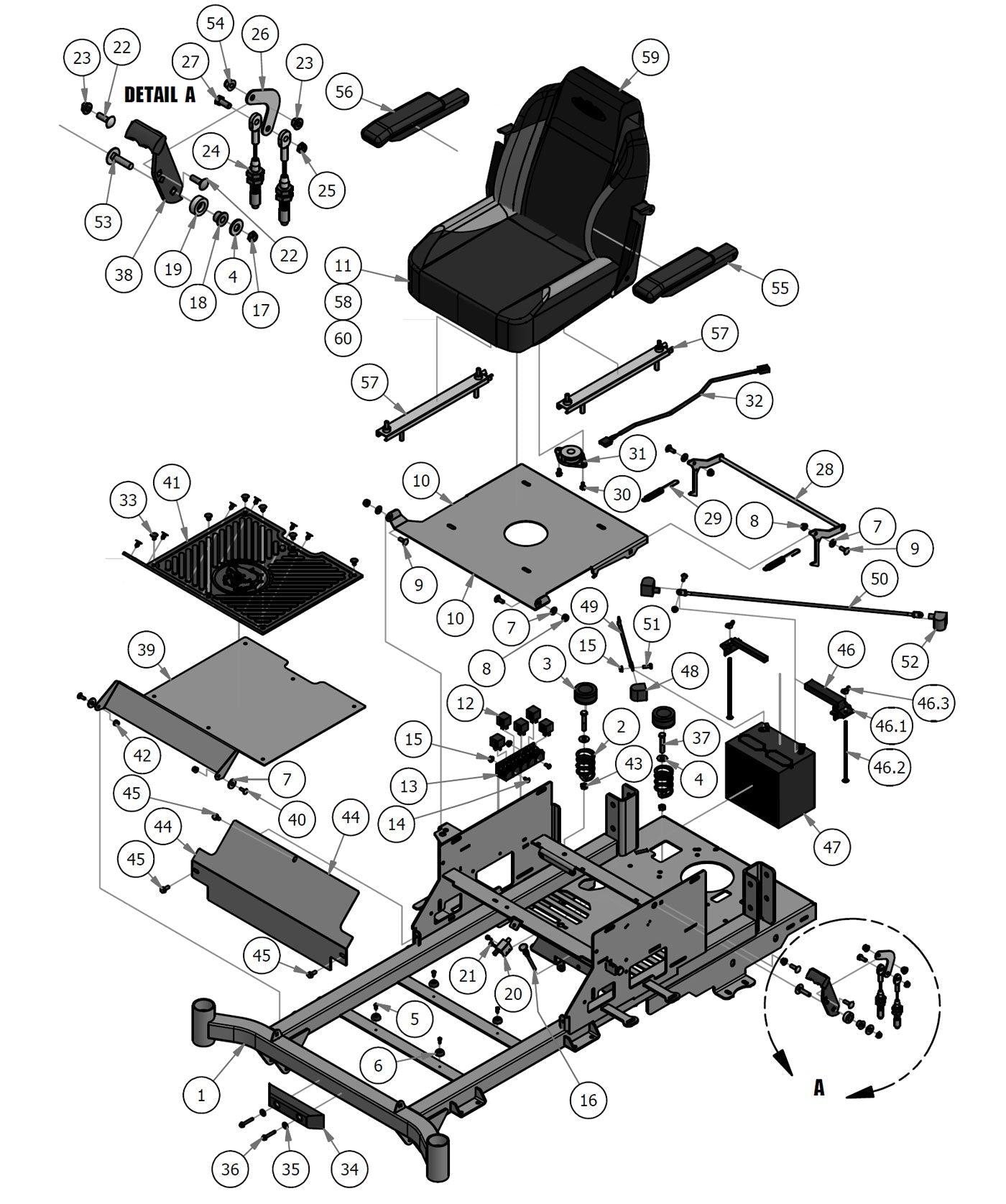

Upper Frame Assembly

Parts Index
- 2 Seat Spring (Qty 2)
- 3 Seat Spring Cap Cover (Qty 2)
- 4 3/8 USS Flat Washer Zinc (Qty 3)
- 5 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 6 Button Bumper (Qty 4)
- 7 .360 ID Plastic Washer (Qty 6)
- 8 5/16-18 Nylon Flange Nut (Qty 8)
- 9 5/16 x 7/8 Carriage Bolt (Qty 4)
- 10 Seat Plate 2016--Orange (Qty 1)
- 11 2016-2018 Base/Compact Outlaw Seat (Qty 1)
- 12 5Relay Terminal (Qty 5)
- 13 2017 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 14 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 15 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 16 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 17 3/8-16 Centerlock Half Nut (Qty 1)
- 18 Bronze Bushing SF-1220-8 (Qty 1)
- 19 Brake Lever Spacer (Qty 1)
- 20 Safety Switch (Qty 1)
- 21 12-24 x 1/2 HWH Bolt (Qty 2)
- 22 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 24 Brake Cable Walk Behind/Revolt (Qty 2)
- 25 5/16-18 Nylock Jam Nut (Qty 1)
- 26 Brake Cable Adapter Bracket (Qty 1)
- 27 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 28 Seat Latch Rod (Qty 1)
- 29 Brake Spring (Qty 2)
- 30 1/4-20x1/2 HWH Bolt Slot Type (Qty 2)
- 31 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 32 Seat Switch Adaptor - Pup (Qty 1)
- 33 OBSOLETE USE 040-6080-00 (Qty 12)
- 34 8 Bumper (Qty 1)
- 35 5/16 USS Flat Washer Zinc (Qty 2)
- 36 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 37 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 38 Brake Handle (Qty 1)
- 39 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 40 1/4 x 3/4 Carriage Bolt (Qty 2)
- 41 Mat (Floor) (Qty 1)
- 42 1/4-20 Nylon Insert Flange Nut (Qty 1)
- 43 3/8-16 Hex Nuts Zinc (Qty 1)
- 44 2017 ZT Cooler Cover--Orange (Qty 1)
- 45 5/16 x 3/4 Hex Washer Type F (Qty 1)
- 46 Battery Hold Down (Plastic) (Qty 1)
- 46.1 Battery Hold Down (Plastic) (Qty 1)
- 46.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 46.3 1/4-20 Wing Nuts Zinc (Qty 1)
- 47 Battery - All models except Renegade and Revolt (Qty 1)
- 48 Black Cable Boot (Qty 2)
- 49 Rebel, Rogue Ground Wire (Qty 1)
- 50 24 Red Battery Cable (Qty 1)
- 51 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 52 Red Lug Boot (Qty 1)
- 53 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 54 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 55 Left Arm rest w/Pad-071-5055-00 (Qty 1)
- 56 Righ Arm rest w/Pad-071-5055-00 (Qty 1)
- 57 OBSOLETE USE 071-2012-00 (Qty 1)
- 58 Seat Belt for All Models w/Har (Qty 1)

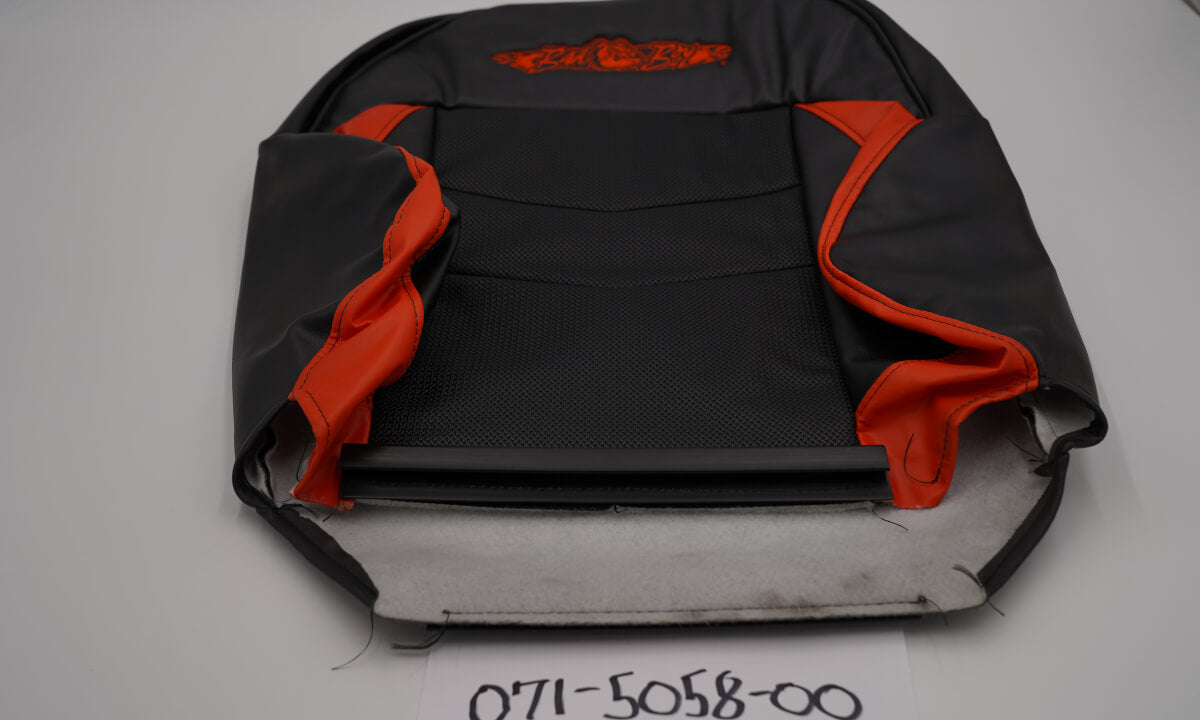

- 59 Back Cover for 071-5055-00 (Qty 1)

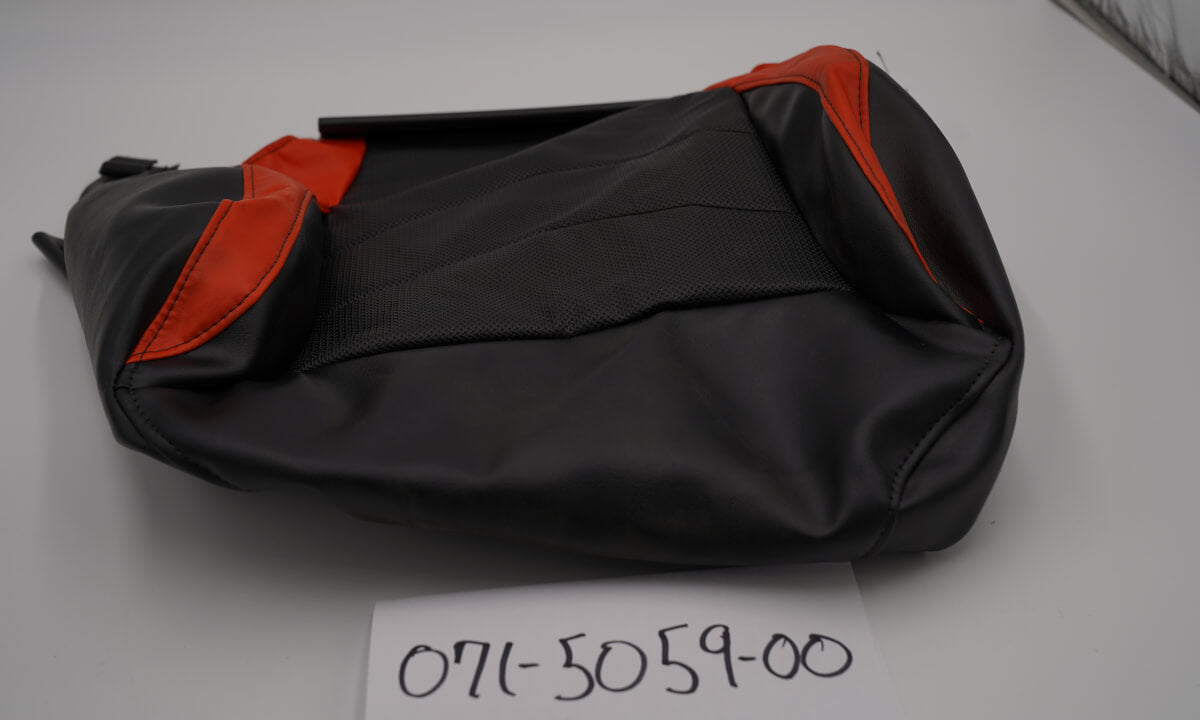

- 60 Seat Bottom Cover for 071-5055-00 (Qty 1)
