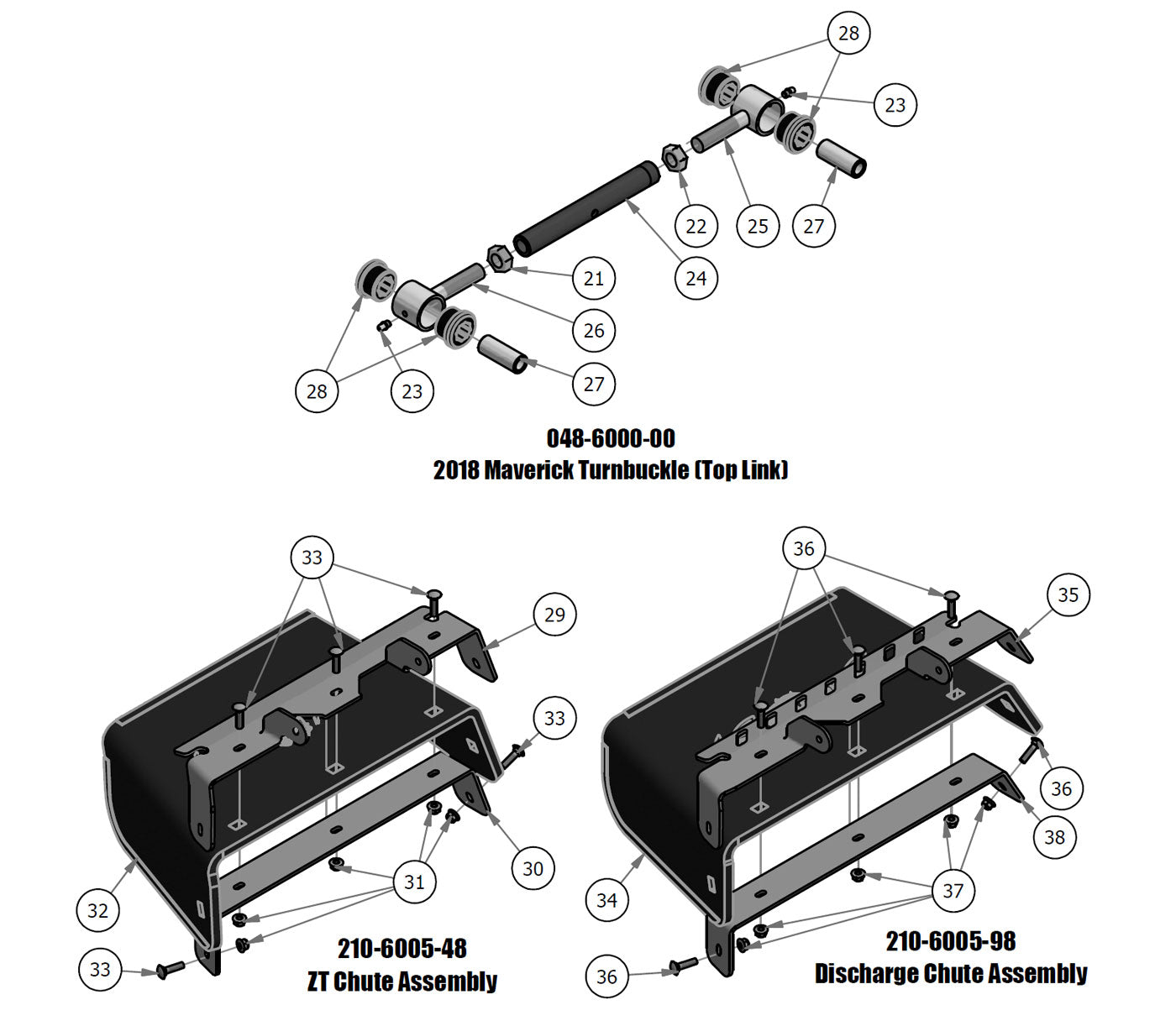

Turnbuckle & Chute Assembly
Parts Index
- 21 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 22 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 23 1/4-28 Threaded Grease Fitting (Qty 2)
- 24 2018 Maverick Toplink Body (Qty 1)
- 25 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 26 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 27 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 28 2018 Maverick Topllink Bushing (Qty 4)
- 29 48/52 Discharge Top Bracket (Qty 1)
- 30 48/52 Discharge Lower Bracket (Qty 1)
- 31 5/16-18 Nylon Flange Nut (Qty 5)
- 32 Discharge Chute (Rubber Component) (Qty 1)
- 33 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 34 Discharge Chute (Rubber Component) (Qty 1)
- 35 60 Discharge Chute Upper (Qty 1)
- 36 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 37 5/16-18 Nylon Flange Nut (Qty 5)
- 38 60 Discharge Lower Bracket (Qty 1)
-
21#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
22#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
23#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
24#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
25#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
26#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
27#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
28#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
29#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
30#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
3137#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
3234#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
3336#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
35#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
38#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
