810cc Vanguard

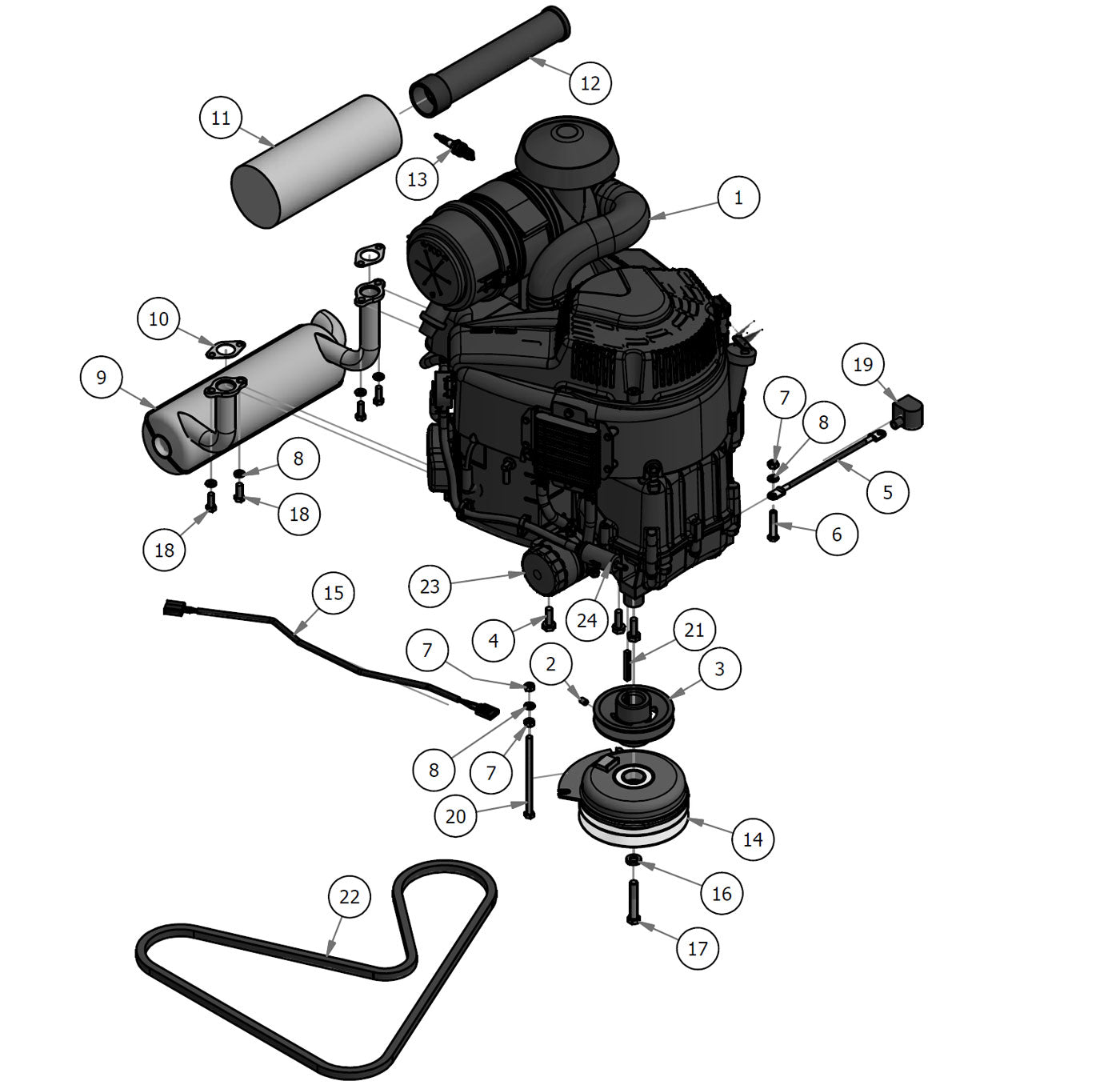

Parts Index
- 1 810cc Vanguard Engine 26hp (Qty 1)
- 2 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 3 4 3/4 Motor Pulley (Qty 1)
- 4 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 5 30 Black Battery Cable (Qty 1)
- 6 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 7 5/16-18 Hex Nuts Zinc (Qty 3)
- 8 5/16 Lock washer Zinc (Qty 6)
- 9 810cc Vanguard Exhaust (Qty 1)
- 10 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 11 Canister Air Fil Outer2010&Old (Qty 1)
- 12 Canister Air Filter - Inner (Qty 1)
- 13 Spark Plug-Kohler/Briggs (Qty 2)
- 14 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 15 Clutch Pigtail (Qty 1)
- 16 7/16 Lock washer zinc (Qty 1)
- 17 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 18 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 19 Black Cable Boot (Qty 1)
- 20 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 21 1/4 X 2 Square Key Stock (Qty 1)
- 22 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 23 Briggs Oil Filter (Qty 1)
- 24 Universal Inline Fuel Filter (Qty 1)
-
1#015-0810-00
810cc Vanguard Engine 26hp
Qty Used: 1Regular price $1,995.00 USDRegular priceUnit price per
-
2#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
3#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
4#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
5#064-8061-00

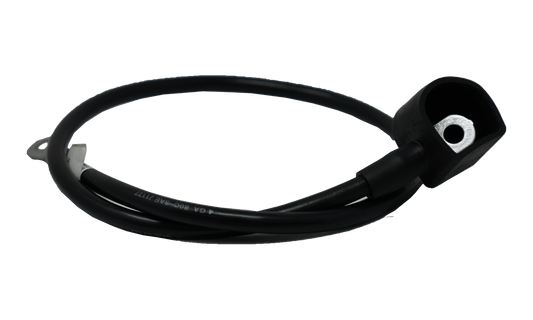

30 Black Battery Cable
Qty Used: 1Regular price $21.42 USDRegular priceUnit price per
-
6#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
7#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
9#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
10#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
11#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
12#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
13#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
-
15#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
16#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
17#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
18#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
19#103-5400-00
Black Cable Boot
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
20#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
21#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
22#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
23#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
24#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
