Tanks

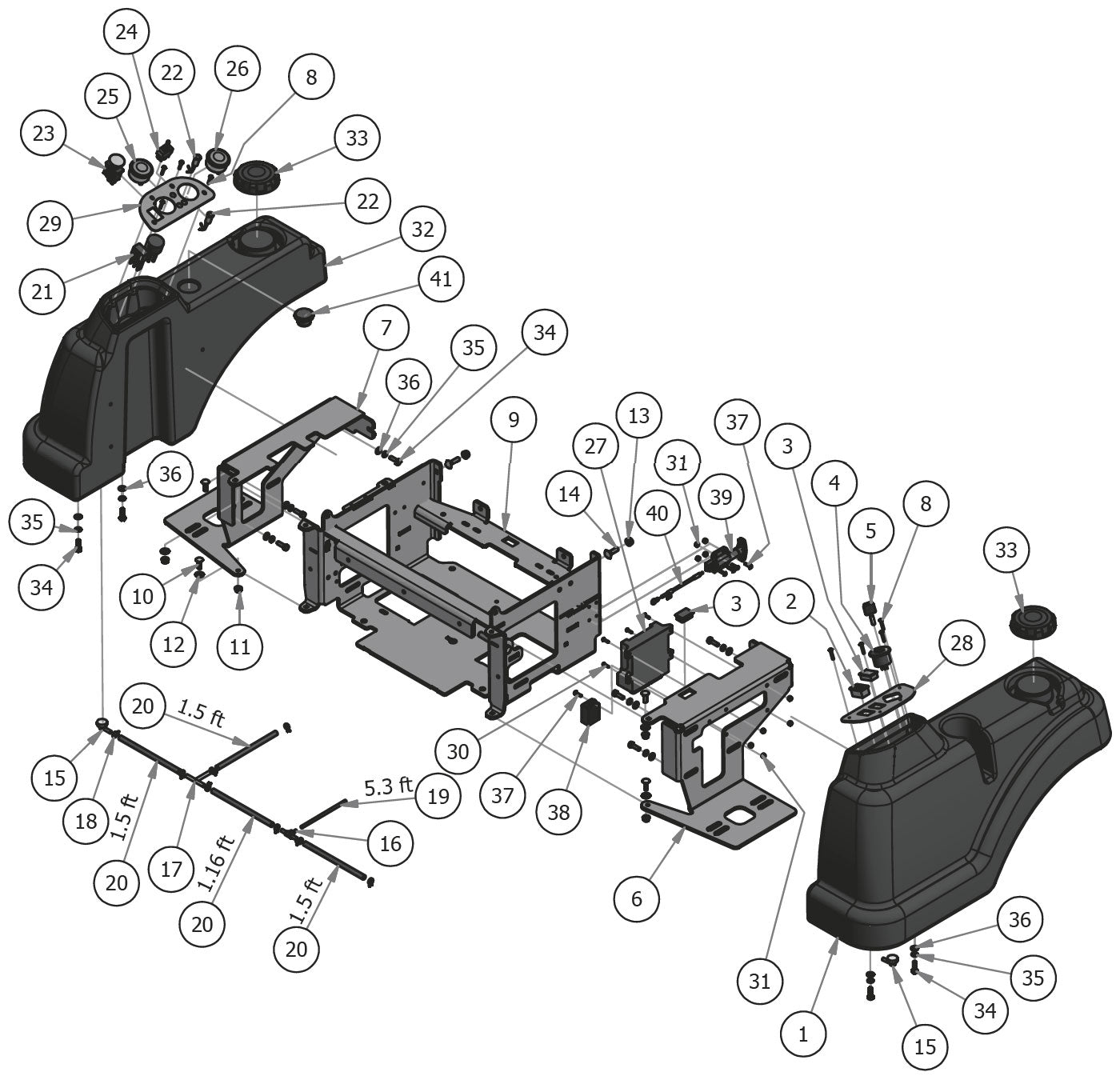

Parts Index
- 1 Diesel/AOS Fuel Tank - Left (Qty 1)
- 2 Hourmeter (Qty 1)
- 3 Light Plug (Qty 2)
- 4 Ignition Switch (Qty 1)
- 5 Ignition Key (Qty 1)
- 6 72 Tank Supports- Left (Qty 1)
- 7 72 Tank Support- Right (Qty 1)
- 8 10-32 x 1 Button Head Bolt (Qty 8)
- 10 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 11 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 12 .360 ID Plastic Washer (Qty 4)
- 13 3/8 Nylock Flange Nut (Qty 2)
- 14 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 15 Fuel Tank Hose Nipple w/Filter (Qty 2)
- 16 Brass Fuel Line T - Diesels (Qty 1)
- 17 Fuel Line T (Qty 1)
- 18 1/4 Fuel Line Clamp (Qty 8)
- 19 3/16 Fuel Line (Qty 1)
- 20 1/4 Fuel Line Hose PRICED/FOOT (Qty 10)
- 21 Harness for 24.7 Diesel (Qty 1)
- 22 Oil Light (Qty 2)
- 23 PTO Engager-Switch for Blades (Qty 1)
- 24 Joystick - Deck Lift (Qty 1)
- 25 2" Water Temperature Gauge (Qty 1)
- 26 2" Oil Pressure Gauge (Qty 1)
- 27 ECM for 1100cc Diesel (Qty 1)
- 28 Diesel Instrument Panel - Left (Qty 1)
- 30 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 31 10-24 Nylon Insert Locknut Zin (Qty 9)
- 32 Diesel/AOS Fuel Tank - Right (Qty 1)
- 33 Diesel Fuel Cap-3.5 inch Neck (Qty 2)
- 34 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 35 5/16 Lock washer Zinc (Qty 10)
- 36 5/16 USS Flat Washer Zinc (Qty 10)
- 37 10-24 X 1 BS C/S 18-8 SS (Qty 5)
- 38 Auto Shut Down for Cat Diesels (Qty 1)
- 39 2016 T Handle Seat Release (Qty 1)
- 40 T-Handle Seat Release Cable (Qty 1)
- 41 Fuel Gauge and Grommet Assembly (Qty 1)
-
1#067-3000-00
Diesel/AOS Fuel Tank - Left
Qty Used: 1Regular price $204.33 USDRegular priceUnit price per
-
-
3#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
5#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
6#031-2010-00
72 Tank Supports- Left
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
7#031-2011-00
72 Tank Support- Right
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
8#018-2015-00
10-32 x 1 Button Head Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
10#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
12#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
13#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
14#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-

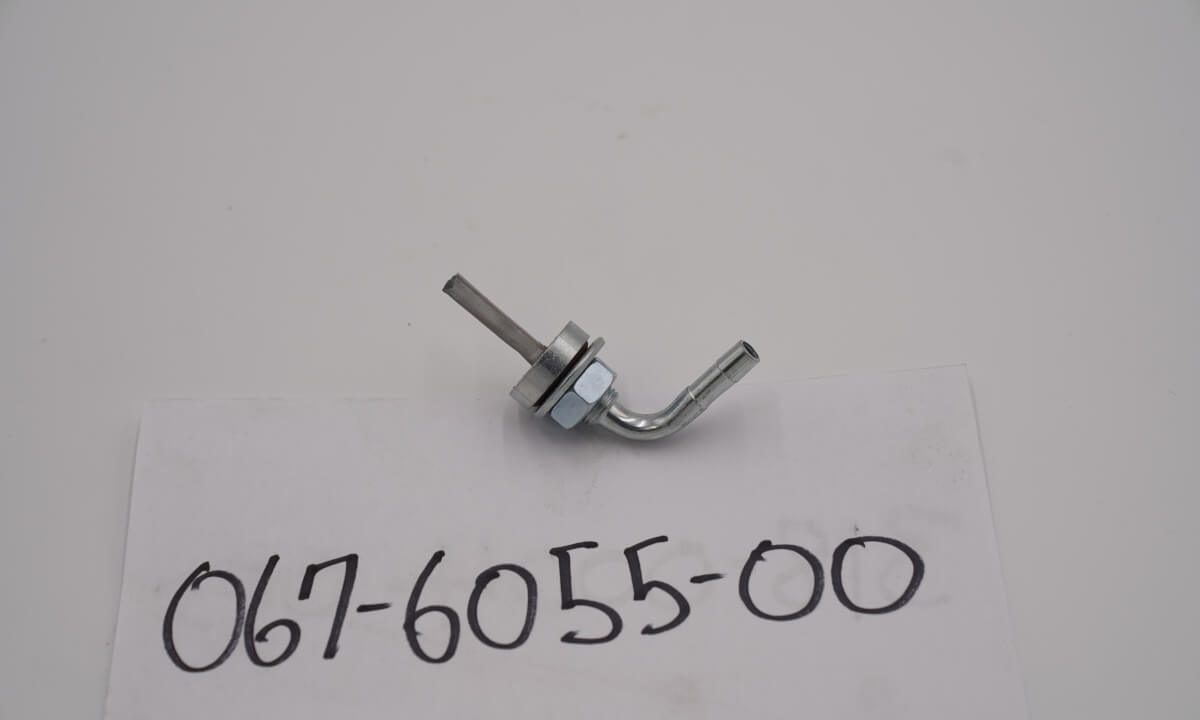

15#067-6055-00
Fuel Tank Hose Nipple w/Filter
Qty Used: 2Regular price $24.75 USDRegular priceUnit price per
-
16#073-2000-00
Brass Fuel Line T - Diesels
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
17#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
18#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 8Regular price $0.88 USDRegular priceUnit price per
-
19#051-8068-00
3/16 Fuel Line
Qty Used: 1Regular price $3.26 USDRegular priceUnit price per
-
20#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 10Regular price $5.83 USDRegular priceUnit price per
-

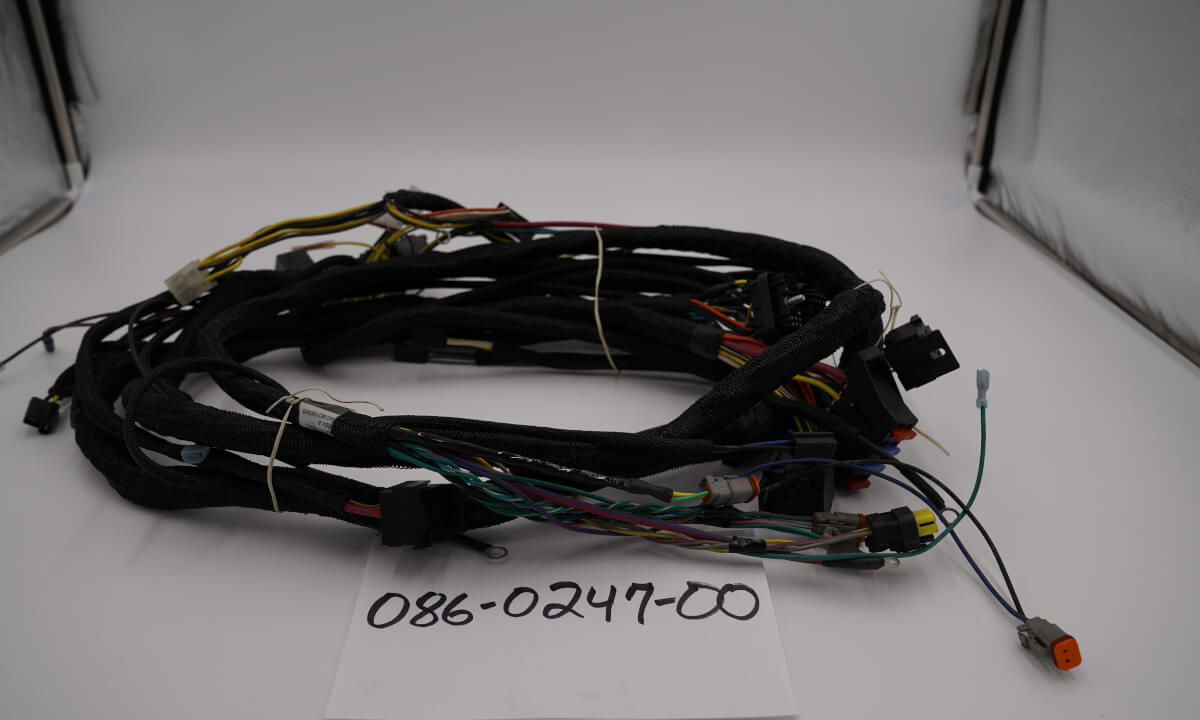

21#086-0247-00
Harness for 24.7 Diesel
Qty Used: 1Regular price $583.83 USDRegular priceUnit price per
-
-
23#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
24#078-8077-00
Joystick - Deck Lift
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
25#086-7001-00
2" Water Temperature Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
26#086-7000-00
2" Oil Pressure Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
27#015-4010-00
ECM for 1100cc Diesel
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
28#079-3402-00
Diesel Instrument Panel - Left
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
30#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
31#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 9Regular price $0.69 USDRegular priceUnit price per
-
32#067-3001-00
Diesel/AOS Fuel Tank - Right
Qty Used: 1Regular price $204.33 USDRegular priceUnit price per
-
33#066-8090-00
Diesel Fuel Cap-3.5 inch Neck
Qty Used: 2Regular price $37.25 USDRegular priceUnit price per
-
34#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
35#019-8051-00
5/16 Lock washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
36#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
37#018-8058-00
10-24 X 1 BS C/S 18-8 SS
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
38#015-0015-00
Auto Shut Down for Cat Diesels
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
39#039-2016-00
2016 T Handle Seat Release
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
40#064-0002-00
T-Handle Seat Release Cable
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
41#067-4025-00
Fuel Gauge and Grommet Assembly
Qty Used: 1Regular price $50.99 USDRegular priceUnit price per
