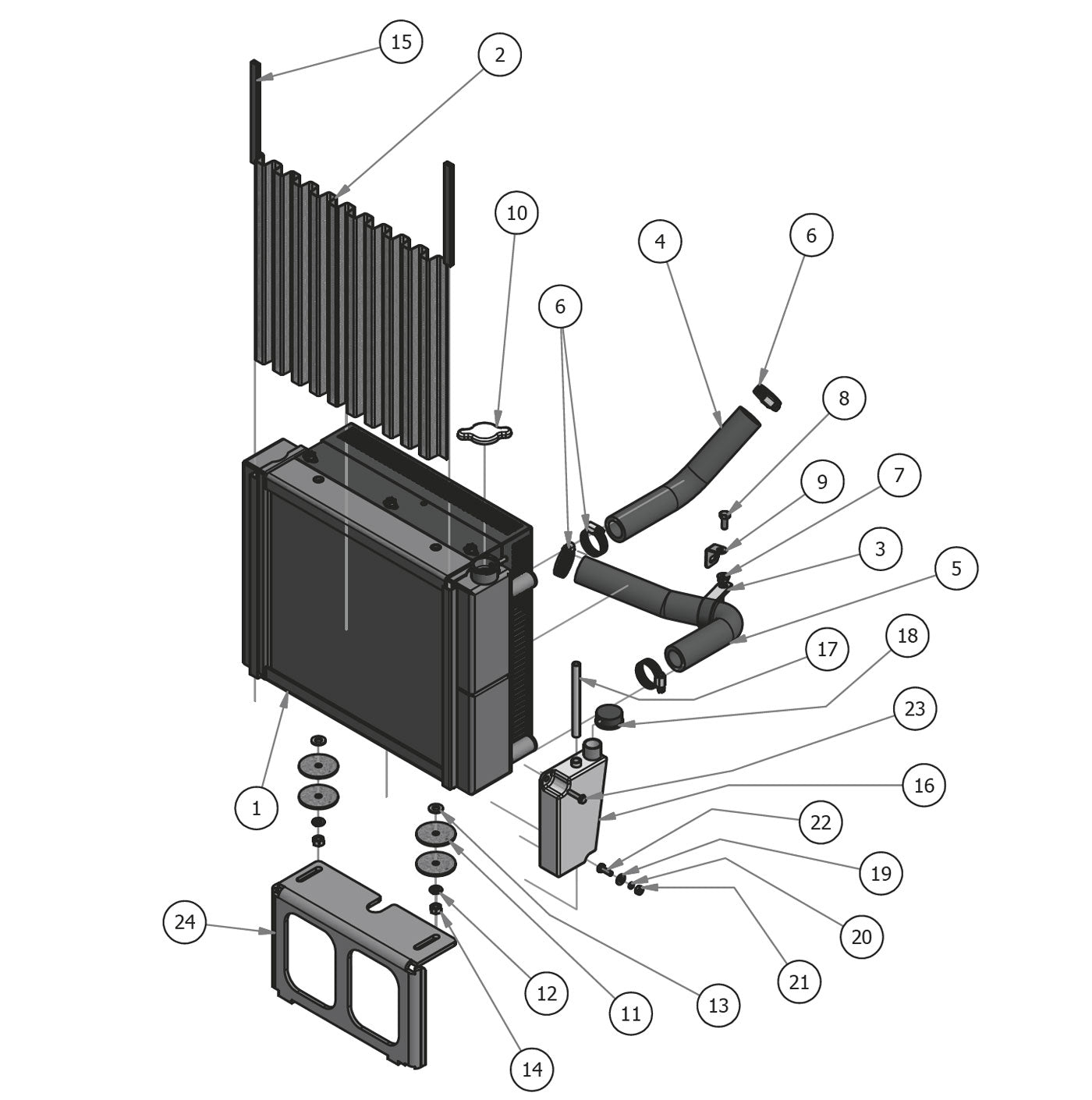

Radiator Assembly
Parts Index
- 1 Radiator - Diesel Models (Qty 1)
- 2 Radiator Screen Diesel (Qty 1)
- 3 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 4 Top Radiator Hose - Diesel (Qty 1)
- 5 Diesel Radiator Hose - Bottom (Qty 1)
- 6 1 1/8 Hose Clamp (Qty 4)
- 7 5/16-18 Nylon Flange Nut (Qty 1)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 9 Radiator Hose Clamp Bracket--Plated (Qty 1)
- 10 Cat Diesel Radiator Cap (Qty 1)
- 11 3/8 X 2-1/4 OD Fiber Washer (Qty 4)
- 12 3/8 Lockwasher Zinc (Qty 2)
- 13 3/8 USS Flat Washer Zinc (Qty 2)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 15 Rubber Trim (Qty 2)
- 16 Overflow Reservoir-27 Kaw (Qty 1)
- 17 5/16 Clear Hose (Qty 1)
- 18 Reservoir Tank Cap-Overflow Ta (Qty 1)
- 19 1/4 USS Flat Washer Zinc (Qty 1)
- 20 1/4 Lockwasher Zinc (Qty 1)
- 21 1/4-20 Hex Nuts Zinc (Qty 1)
- 22 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 23 1/4 x 1 Hex Head Tek Screw (Qty 1)
-
1#061-5000-00
Radiator - Diesel Models
Qty Used: 1Regular price $583.83 USDRegular priceUnit price per
-
2#094-5088-00
Radiator Screen Diesel
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
3#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
4#051-3000-00
Top Radiator Hose - Diesel
Qty Used: 1Regular price $20.59 USDRegular priceUnit price per
-
5#051-3001-00
Diesel Radiator Hose - Bottom
Qty Used: 1Regular price $26.25 USDRegular priceUnit price per
-
6#072-2003-00
1 1/8 Hose Clamp
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
7#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
8#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
9#039-1015-00
Radiator Hose Clamp Bracket--Plated
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
10#015-0104-00
Cat Diesel Radiator Cap
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
11#019-5050-00
3/8 X 2-1/4 OD Fiber Washer
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
12#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
13#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
15#084-4015-00
Rubber Trim
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
16#015-0111-00
Overflow Reservoir-27 Kaw
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
17#051-8069-00
5/16 Clear Hose
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
18#066-8075-00
Reservoir Tank Cap-Overflow Ta
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
19#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
21#013-8039-00
1/4-20 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
22#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 1Regular price $1.00 USDRegular priceUnit price per
