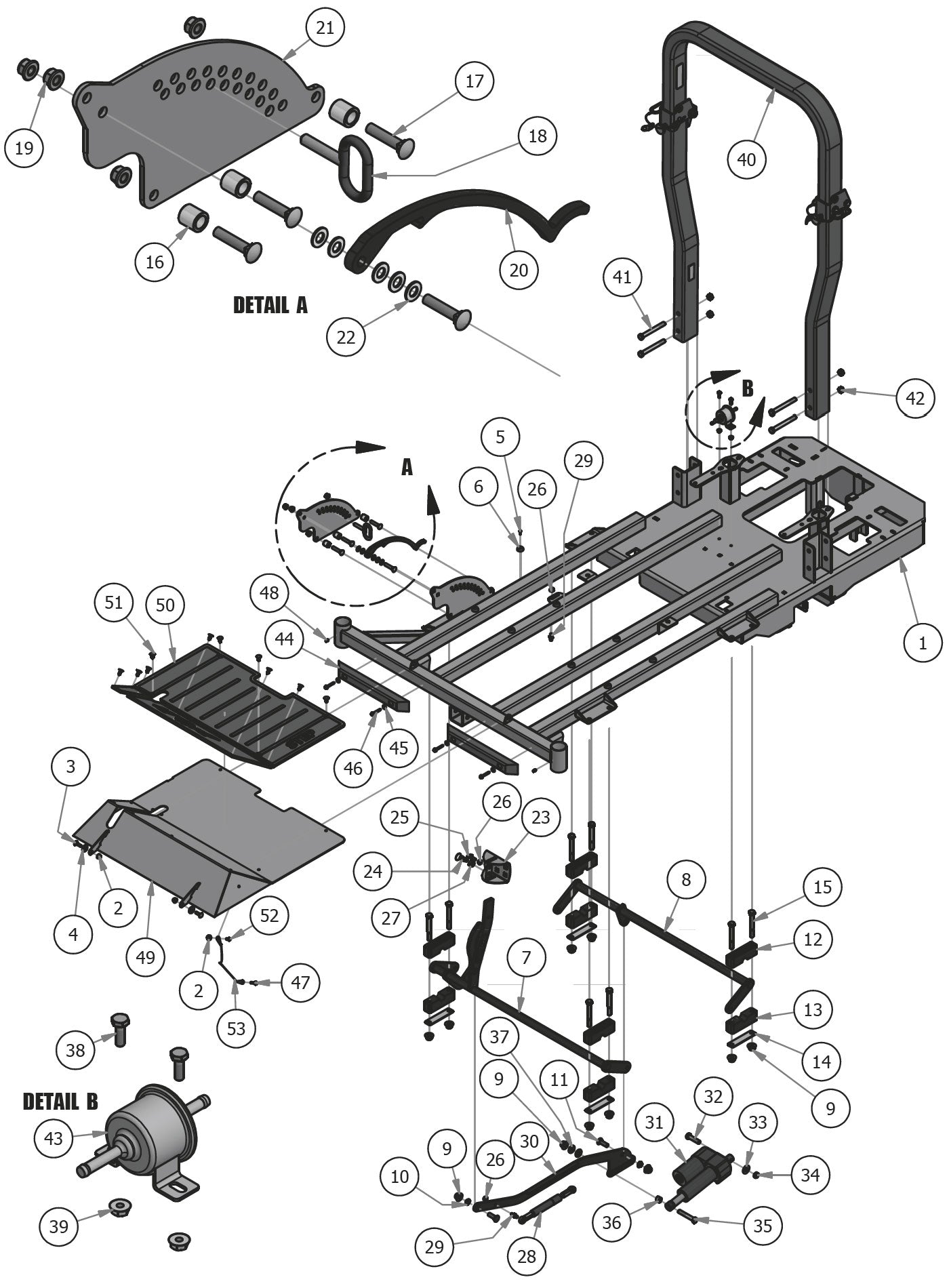

Frame
Parts Index
- 2 5/16-18 Nylon Flange Nut (Qty 3)
- 3 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 4 .360 ID Plastic Washer (Qty 2)
- 5 10 X 1/2 Pan Phil a T/S Zinc (Qty 8)
- 6 Button Bumper (Qty 8)
- 7 2015 Outlaw Actuator Bar (Qty 1)
- 8 2015 Outlaw Actuator Bar(Rear) (Qty 1)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 10 Actuator Bar Bushing-SF-1620-4 (Qty 2)
- 11 1/2 x 1 1/2 Carriage Bolt (Qty 2)
- 12 Two Piece Pillow Block-Male (Qty 4)
- 13 Two Piece Pillow Block-Female (Qty 4)
- 14 Two Piece Pillow Block-Plate (Qty 4)
- 15 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 16 Spacer 3/4ODx1/2IDx0.75 (Qty 3)
- 17 3/8 x 1 3/4 Carriage Bolt (Qty 4)
- 18 Deck Height Lever Pin (Qty 1)
- 19 3/8 Nylock Flange Nut (Qty 4)
- 20 Outlaw Deck Lever Lock (Qty 1)
- 21 Outlaw Height Indicator Plate (Qty 1)
- 22 .390x.750x.062 Nylon Washer (Qty 5)
- 23 Outlaw Deck Lift Pedal (Qty 1)
- 24 Pull Pin - Foot Assist w/Ring (Qty 1)
- 25 5/16-18 x 1 Thumb Screw Zinc (Qty 1)
- 26 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 27 1/2-13 Hex Nuts Zinc (Qty 1)
- 28 Dampener (250lbs) (Qty 1)
- 29 10mm Damper Ball Stud- (Qty 2)
- 30 Outlaw Linkage Bar Suspension Frame (Qty 1)
- 31 Actuator for Pup/Lightning/AOS (Qty 1)
- 32 1/2-13 x 2 Grade 8 Hex Bolt (Qty 1)
- 33 1/2 SAE Flat Washer GR 8 (Qty 1)
- 34 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 35 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 36 1/2 Set Collar w/set collar (Qty 1)
- 37 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 38 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 39 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 40 2014 & Up Diesel 2x3 Folding (Qty 1)
- 41 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 42 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 43 Fuel Pump for 1100cc Diesel (Qty 1)
- 44 14 Bumper (Qty 2)
- 45 1/4 USS Flat Washer Zinc (Qty 4)
- 46 14 X 1-1/2 HWA A T/S Zinc (Qty 4)
- 47 1/4 x 1 Hex Head Tek Screw (Qty 1)
- 48 1/4 Drive-in Grease Fitting (Qty 2)
- 50 Foot Assist Floor Mat (Qty 1)
- 51 Ratchet Fastener - Floorboard (Qty 10)
- 52 1/4-20 X 5/8 BS C/S 18-8 SS (Qty 1)
- 53 Floorboard Cable (Qty 1)
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
3#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
5#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
6#029-4010-00
Button Bumper
Qty Used: 8Regular price $1.31 USDRegular priceUnit price per
-
7#028-6030-00
2015 Outlaw Actuator Bar
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
8#028-6040-00
2015 Outlaw Actuator Bar(Rear)
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
10#032-3000-00
Actuator Bar Bushing-SF-1620-4
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
11#018-0008-00
1/2 x 1 1/2 Carriage Bolt
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
12#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
13#017-9050-00
Two Piece Pillow Block-Female
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
14#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
15#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
16#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 3Regular price $2.99 USDRegular priceUnit price per
-
17#018-0009-00
3/8 x 1 3/4 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
18#040-4000-00
Deck Height Lever Pin
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
19#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
20#031-0100-00
Outlaw Deck Lever Lock
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
21#026-2100-00
Outlaw Height Indicator Plate
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
22#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
23#026-0013-00
Outlaw Deck Lift Pedal
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
24#040-5000-00
Pull Pin - Foot Assist w/Ring
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
25#030-0010-00
5/16-18 x 1 Thumb Screw Zinc
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
26#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
27#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
28#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
29#018-2050-00
10mm Damper Ball Stud-
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
30#028-6055-00
Outlaw Linkage Bar Suspension Frame
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
31#035-7033-00
Actuator for Pup/Lightning/AOS
Qty Used: 1Regular price $408.75 USDRegular priceUnit price per
-
32#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
33#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 1Regular price $0.75 USDRegular priceUnit price per
-
34#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
35#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
36#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
37#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
38#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
39#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
40#089-0003-00
2014 & Up Diesel 2x3 Folding
Qty Used: 1Regular price $349.00 USDRegular priceUnit price per
-
41#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
42#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
43#015-4000-00
Fuel Pump for 1100cc Diesel
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
-
45#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
46#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
47#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 1Regular price $1.00 USDRegular priceUnit price per
-
48#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
50#081-2008-00

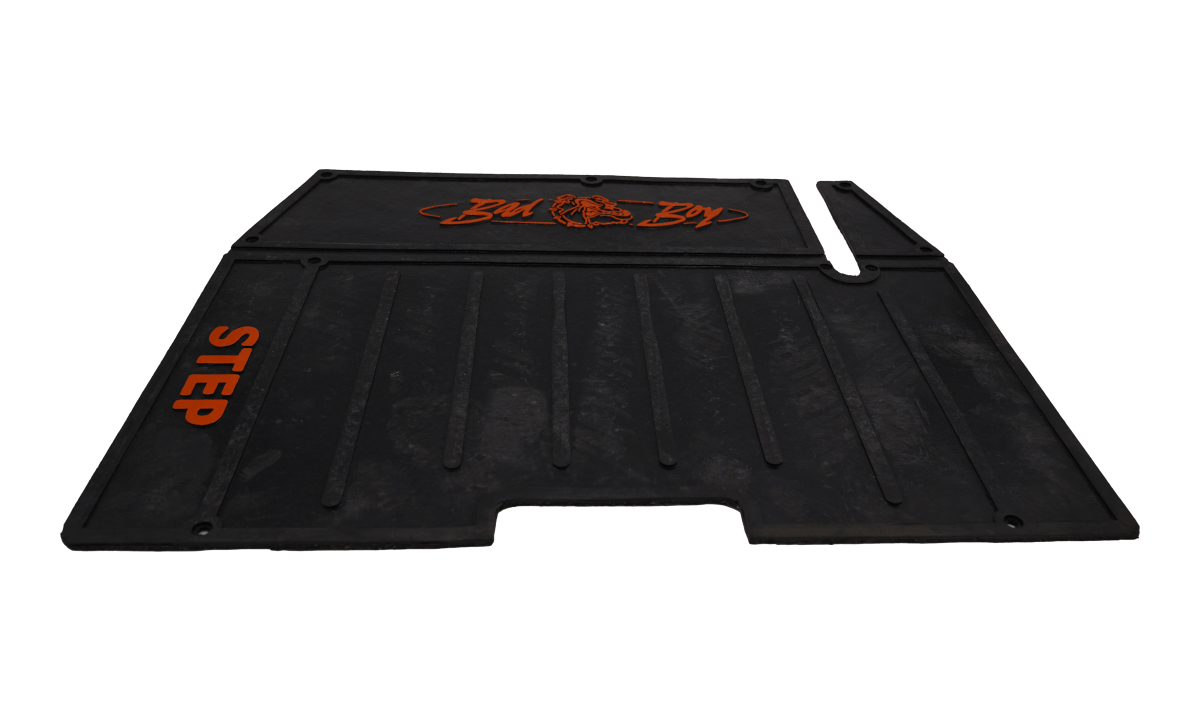

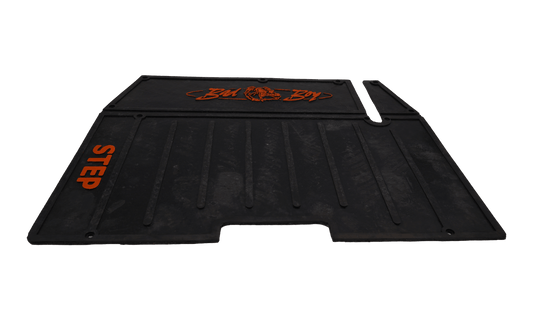

Foot Assist Floor Mat
Qty Used: 1Regular price $62.39 USDRegular priceUnit price per
-
51#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 10Regular price $2.91 USDRegular priceUnit price per
-
52#018-8064-00
1/4-20 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-
53#064-2006-00
Floorboard Cable
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
