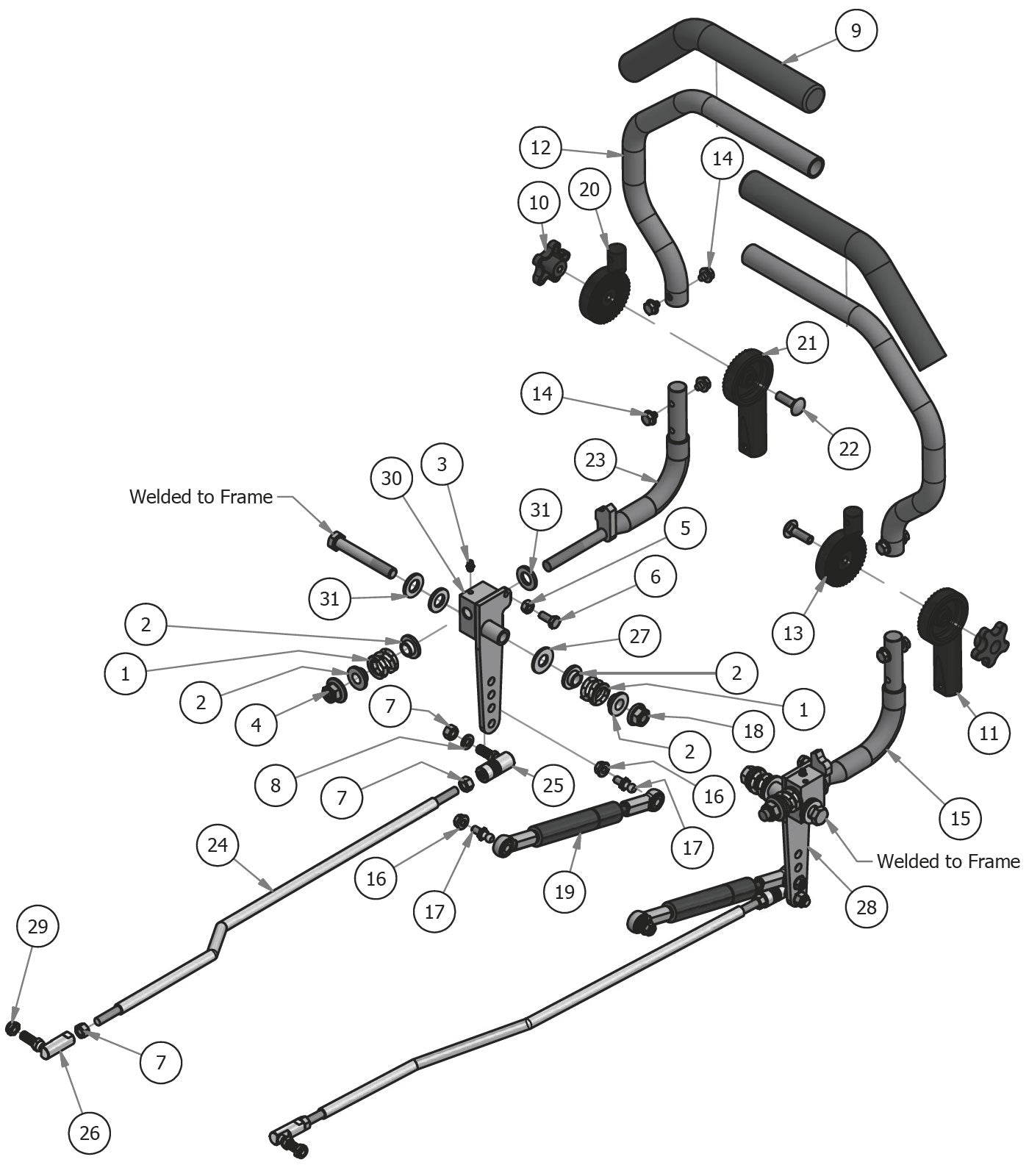

Drive Arms
Parts Index
- 1 Drive Lever Housing Spring (Qty 4)
- 2 .515 ID Plastic Shoulder Washer (Qty 8)
- 3 1/4 Drive-in Grease Fitting (Qty 2)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 5 5/16-18 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 7 3/8-24 Hex Nut Zinc (Qty 6)
- 8 3/8 Lockwasher Zinc (Qty 2)
- 9 Black Steering Grip (Qty 2)
- 10 Knob - Adjustable Steering Arm (Qty 2)
- 11 Black/Right/Lower Steering Arm (Qty 1)
- 12 Upper Tube-Adjustable Steering (Qty 2)
- 13 Black/Right/Upper Steering Arm (Qty 1)
- 14 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 8)
- 15 Steering Arm Elbow - Right (Qty 1)
- 16 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 17 10mm Damper Ball Stud- (Qty 4)
- 18 1/2-13 HEX FLANGE (GR.G) ZC (Qty 2)
- 19 Damper (Ball Socket) (Qty 2)
- 20 Black/Left/Upper Steering Arm (Qty 1)
- 21 Black/Left/Lower Steering Arm (Qty 1)
- 22 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 23 Steering Arm Elbow- Left (Qty 1)
- 24 Steering Push Rod-28 Compact (Qty 2)
- 25 Quick Release Ball Joint (Qty 2)
- 26 Ball Joint - 3/8-24 (Qty 2)
- 27 1/2 SAE Flat Washer GR 8 (Qty 2)
- 28 Steering Block Assembly-Right (Qty 1)
- 29 3/8-24 Nylon Insert Jam Locknu (Qty 2)
- 30 Steering Block Assembly-Left (Qty 1)
- 31 .630 ID X 1.122 OD X .142 THK (Qty 6)
-
1#034-8025-00
Drive Lever Housing Spring
Qty Used: 4Regular price $3.70 USDRegular priceUnit price per
-
2#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
5#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
8#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#069-4010-00
Black Steering Grip
Qty Used: 2Regular price $7.38 USDRegular priceUnit price per
-
10#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
11#031-9015-70
Black/Right/Lower Steering Arm
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
12#031-9010-00
Upper Tube-Adjustable Steering
Qty Used: 2Regular price $26.47 USDRegular priceUnit price per
-
13#031-9016-70
Black/Right/Upper Steering Arm
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
14#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
15#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
16#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
17#018-2050-00
10mm Damper Ball Stud-
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
18#013-0085-00
1/2-13 HEX FLANGE (GR.G) ZC
Qty Used: 2Regular price $1.10 USDRegular priceUnit price per
-
19#087-8080-00
Damper (Ball Socket)
Qty Used: 2Regular price $53.01 USDRegular priceUnit price per
-
20#031-9017-70
Black/Left/Upper Steering Arm
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
21#031-9014-70
Black/Left/Lower Steering Arm
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
22#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
23#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-

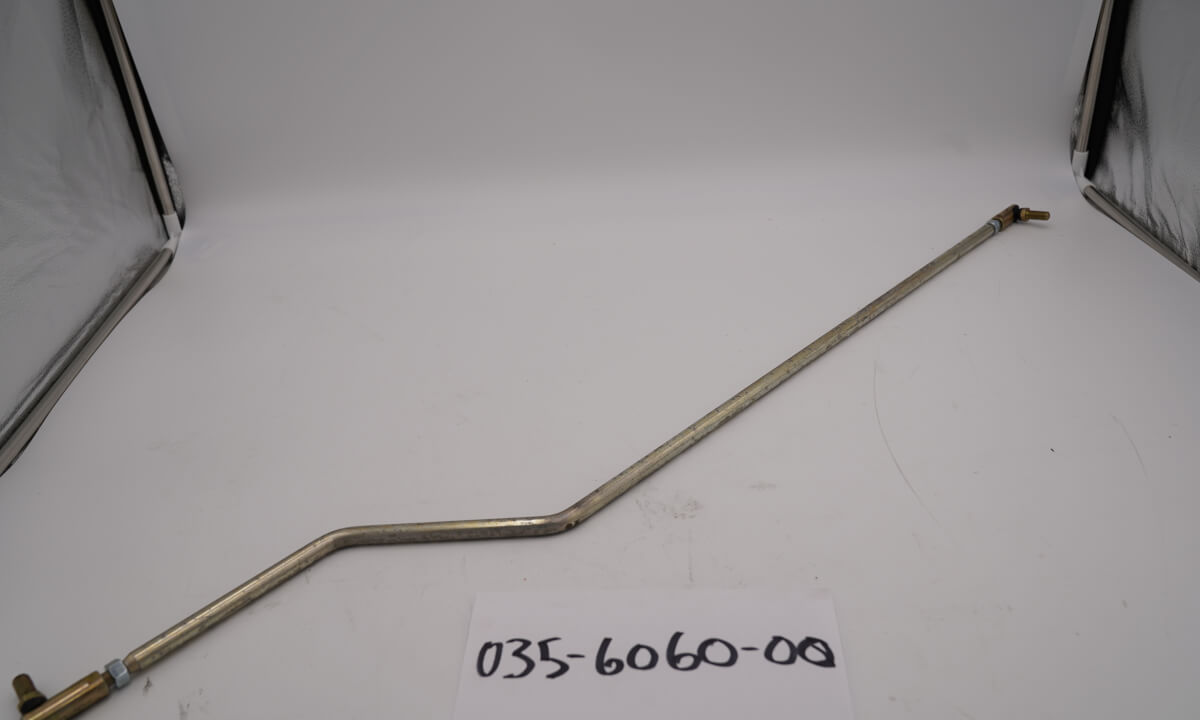

24#035-6060-00
Steering Push Rod-28 Compact
Qty Used: 2Regular price $33.34 USDRegular priceUnit price per
-
25#099-2009-00
Quick Release Ball Joint
Qty Used: 2Regular price $8.99 USDRegular priceUnit price per
-
26#099-6046-00
Ball Joint - 3/8-24
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
27#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
28#027-2017-00
Steering Block Assembly-Right
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
29#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
30#027-2018-00
Steering Block Assembly-Left
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
31#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
