Back Pump Cover

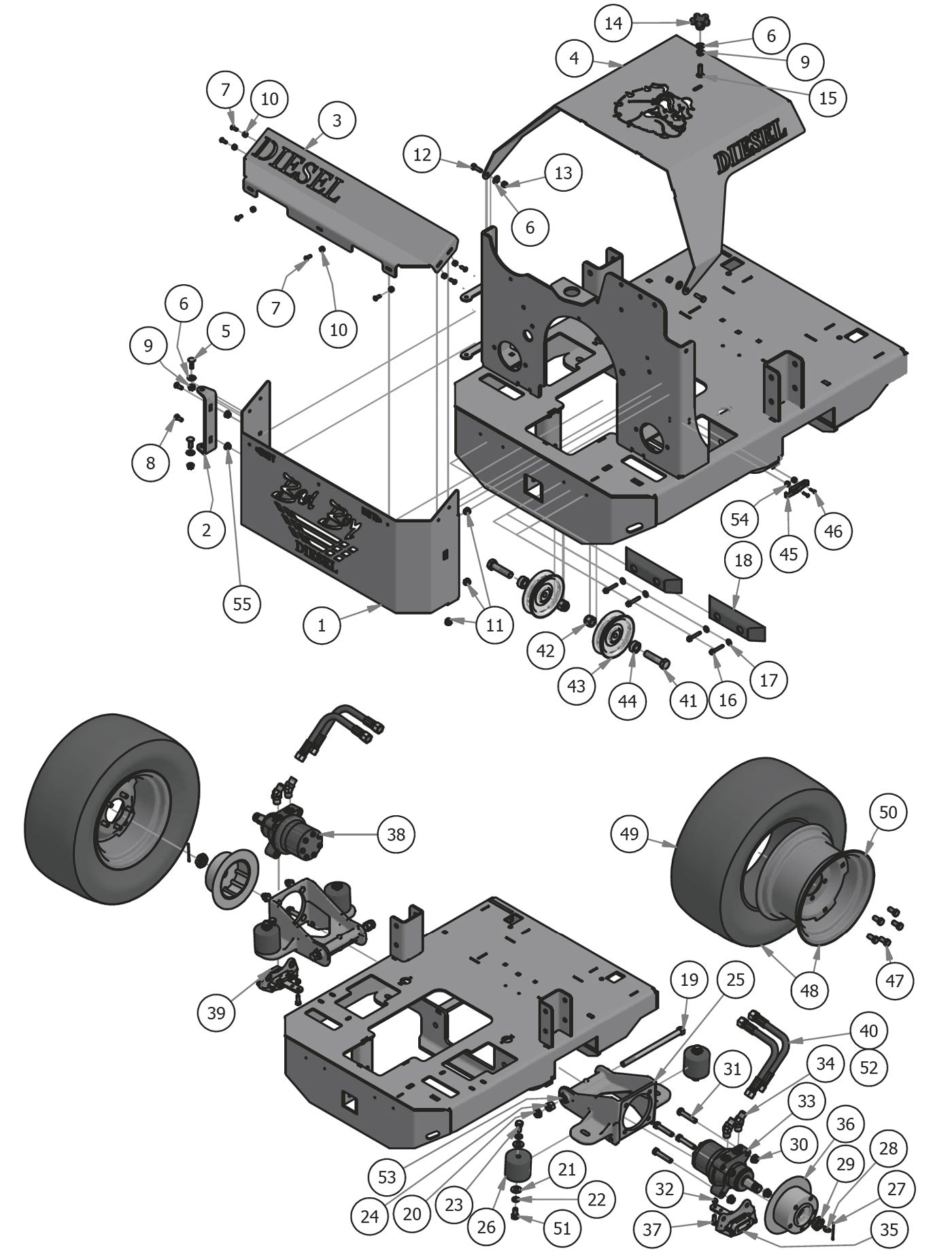

Parts Index
- 1 Diesel Back Pump Cover 2008 (Qty 1)
- 2 Back Cover Hinge Bracket (Qty 1)
- 3 Diesel Back Pump Cover 2008 To (Qty 1)
- 5 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 6 .360 ID Plastic Washer (Qty 5)
- 7 1/4-20 X 5/8 BS C/S 18-8 SS (Qty 7)
- 8 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 2)
- 9 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 10 1/4-20 Nylon Insert Locknut Zi (Qty 7)
- 11 5/8 Round Insert - Deck (Qty 3)
- 12 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 13 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 14 5/16 Black Plastic Knob (Qty 1)
- 15 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 16 14 X 1-1/2 HWA A T/S Zinc (Qty 4)
- 17 1/4 USS Flat Washer Zinc (Qty 4)
- 18 8 Bumper (Qty 2)
- 19 5/8 x 10 Bolt Grade 8 (Qty 4)
- 20 5/8-11 Nylon Insert Jam Locknu (Qty 4)
- 21 1/2 SAE Flat Washer GR 8 (Qty 16)
- 22 1/2 Lockwasher Zinc (Qty 16)
- 23 1/2 x 1 Bolt (Qty 8)
- 24 5/8-11 Nylon Insert Locknut Zi (Qty 4)
- 25 60 Suspension Kit Wheel Motor (Qty 2)
- 26 Isolator (Blue Dot) (Qty 8)
- 27 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 28 Woodruff Key-Wheel Motor (Qty 2)
- 29 OBSOLETE USE 013-7055-00 (Qty 2)
- 30 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 31 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 8)
- 32 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 33 18ci Parker Wheel Motor-Right (Qty 1)
- 34 45 Degree Wheel Motor Fitting (Qty 4)
- 35 Brake Caliper with Bracket RH (Qty 1)
- 36 Brake Disc (96-37486) (Qty 2)
- 37 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 38 18ci Parker Wheel Motor - Left (Qty 1)
- 39 Brake Caliper with Bracket LH (Qty 1)
- 40 26 inch Hose Assembly with Ada (Qty 4)
- 41 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 2)
- 42 5/8-11 Nylon Insert Locknut Zi (Qty 2)
- 43 5 V Idler Pulley - BCVI-81 (Qty 2)
- 44 5/8 Set Collar W/One Set Screw (Qty 2)
- 45 Steel Pump Cover Latch-Diesel (Qty 1)
- 46 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 47 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 48 26 x 12.00 - 12 Tire and Wheel (Qty 2)
- 49 26 x 12.00 - 12 Tire (Qty 2)
- 50 12 x 10.5 Wheel - AOS Rear (Qty 2)
- 51 1/2-13 X 1-1/4 Hex Bolt (Qty 4)
- 52 26 inch Hose Only (Qty 4)
- 53 Brass Bushing - SS-2024-18 (Qty 4)
- 54 10-24 Nylon Insert Locknut Zin (Qty 2)
- 55 5/16-18 Nylon Flange Nut (Qty 2)
-
54#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
55#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
1#014-5920-00
Diesel Back Pump Cover 2008
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
2#039-0070-00
Back Cover Hinge Bracket
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
3#014-5921-00
Diesel Back Pump Cover 2008 To
Qty Used: 1Regular price $25.00 USDRegular priceUnit price per
-
5#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#019-6042-00
.360 ID Plastic Washer
Qty Used: 5Regular price $0.00 USDRegular priceUnit price per
-
7#018-8064-00
1/4-20 X 5/8 BS C/S 18-8 SS
Qty Used: 7Regular price $0.50 USDRegular priceUnit price per
-
8#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
10#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
11#014-3010-00
5/8 Round Insert - Deck
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
12#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
1332#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#045-6043-00
5/16 Black Plastic Knob
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
15#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
16#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
17#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
-
19#018-2051-00
5/8 x 10 Bolt Grade 8
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
20#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 16Regular price $0.75 USDRegular priceUnit price per
-
22#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 16Regular price $0.00 USDRegular priceUnit price per
-
23#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
2442#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
25#070-8000-00
60 Suspension Kit Wheel Motor
Qty Used: 2Regular price $291.91 USDRegular priceUnit price per
-
26#032-8999-00
Isolator (Blue Dot)
Qty Used: 8Regular price $60.02 USDRegular priceUnit price per
-
27#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
28#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
29#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 2Regular price $10.95 USDRegular priceUnit price per
-
30#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
31#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 8Regular price $1.59 USDRegular priceUnit price per
-
33#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
34#024-2050-00
45 Degree Wheel Motor Fitting
Qty Used: 4Regular price $15.91 USDRegular priceUnit price per
-
35#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
36#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
37#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
38#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
39#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
40#051-2080-00
26 inch Hose Assembly with Ada
Qty Used: 4Regular price $145.95 USDRegular priceUnit price per
-
41#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
43#033-7025-00
5 V Idler Pulley - BCVI-81
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
44#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
45#052-3000-00
Steel Pump Cover Latch-Diesel
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
46#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
47#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
48#022-7031-00
26 x 12.00 - 12 Tire and Wheel
Qty Used: 2Regular price $398.09 USDRegular priceUnit price per
-
49#022-7032-00
26 x 12.00 - 12 Tire
Qty Used: 2Regular price $279.99 USDRegular priceUnit price per
-
50#022-7034-00
12 x 10.5 Wheel - AOS Rear
Qty Used: 2Regular price $189.99 USDRegular priceUnit price per
-
51#018-2080-00
1/2-13 X 1-1/4 Hex Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
52#051-6085-00
26 inch Hose Only
Qty Used: 4Regular price $37.88 USDRegular priceUnit price per
-
53#032-6033-00
Brass Bushing - SS-2024-18
Qty Used: 4Regular price $3.49 USDRegular priceUnit price per
